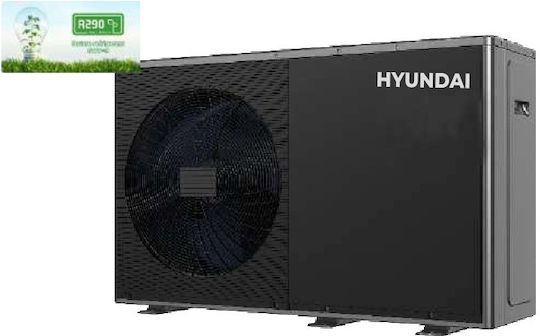

Hyundai Single Phase Heat Pump 16kW 60°C Monoblock
Heat Pumps

Hyundai Single Phase Heat Pump 16kW 60°C Monoblock Code: HYHC-V16WD2N7

The Hyundai M-Series monoblock heat pump with DC Inverter technology combines high energy class A+++ efficiency with quiet operation and delivers effective performance even at very low temperatures...

The Hyundai M-Series monoblock heat pump with DC Inverter technology combines high energy class A+++ efficiency with quiet operation and delivers effective performance even at very low temperatures down to -25°C. It uses the environmentally friendly R290 refrigerant, providing heating with a maximum water temperature of 60°C and a cooling capacity of 14.9...

See full description See full description
Review the product
Product report

Description

Description

The Hyundai M-Series monoblock heat pump with DC Inverter technology combines high energy class A+++ efficiency with quiet operation and delivers effective performance even at very low temperatures down to -25°C. It uses the environmentally friendly R290 refrigerant, providing heating with a maximum water temperature of 60°C and a cooling capacity of 14.9 kW. The unit is three-phase and supports control via Wi-Fi and app, as well as features like Smart Grid, climate curve, and energy consumption statistics. It offers flexibility with two heating zones and the ability to control up to 6 units in parallel with a single controller.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
HYHC-V16WD2N7

Technical Specifications

Rated Thermal Power (7ºC - 35ºC)
16 kW

Rated Thermal Power (7ºC - 35ºC): 16


Recommended for a residence of 130m² and above.
Maximum Water Temperature
60 °C
Heating Type
Air to Water

Heating Type

Air to Water
They use air as a source of heat, and water as a means of transportation, to channel cooling or heating into the space.
System Type
Monoblock

System Type

Monoblock

In the monoblock system, all individual components (such as the compressor, heat exchanger, fans, etc.) are integrated into a single unit, which is placed in an external space. Pros: Easy installation and direct connection to the water system. Cons: The pipes and heat exchanger are located externally, resulting in heat loss or, in worse cases, due to extreme weather conditions (such as freezing), there is a possibility of the heat exchanger or pipes breaking.
Cooling
Yes
Domestic Hot Water
No Domestic Water Supply
Power Source
Single Phase

Power Source

Single Phase

The voltage of the single-phase current is 220-230V (the same as the voltage required by household appliances) and is sufficient for the majority of domestic consumers.
Type of Refrigerant Fluid
R290

Energy Class

Energy Class (35ºC)
A+++
Energy Class (55ºC)
A++
COP (7ºC - 35ºC)
-

COP (7ºC - 35ºC)

(Coefficient Of Performance) is the measurement that shows how efficient our pump is (in terms of heating) in relation to the amount of energy it consumes. The higher the efficiency rating, the more efficient our pump is.
EER (7ºC - 35ºC)
-

EER (7ºC - 35ºC)

(Energy Efficiency Ratio) is the measurement that shows us how efficient our pump is in cooling. The higher the efficiency rating, the more efficient our pump is.
Outdoor Unit Noise Level
-

Outdoor Dimensions

Length
1385 mm
Height
945 mm
Length
526 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

The Hyundai M-Series monoblock heat pump with DC Inverter technology combines high energy class A+++ efficiency with quiet operation and delivers effective performance even at very low temperatures down to -25°C. It uses the environmentally friendly R290 refrigerant, providing heating with a maximum water temperature of 60°C and a cooling capacity of 14.9 kW. The unit is three-phase and supports control via Wi-Fi and app, as well as features like Smart Grid, climate curve, and energy consumption statistics. It offers flexibility with two heating zones and the ability to control up to 6 units in parallel with a single controller.

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
HYHC-V16WD2N7

Technical Specifications

Rated Thermal Power (7ºC - 35ºC)
16 kW

Rated Thermal Power (7ºC - 35ºC): 16


Recommended for a residence of 130m² and above.
Maximum Water Temperature
60 °C
Heating Type
Air to Water

Heating Type

Air to Water
They use air as a source of heat, and water as a means of transportation, to channel cooling or heating into the space.
System Type
Monoblock

System Type

Monoblock

In the monoblock system, all individual components (such as the compressor, heat exchanger, fans, etc.) are integrated into a single unit, which is placed in an external space. Pros: Easy installation and direct connection to the water system. Cons: The pipes and heat exchanger are located externally, resulting in heat loss or, in worse cases, due to extreme weather conditions (such as freezing), there is a possibility of the heat exchanger or pipes breaking.
Cooling
Yes
Domestic Hot Water
No Domestic Water Supply
Power Source
Single Phase

Power Source

Single Phase

The voltage of the single-phase current is 220-230V (the same as the voltage required by household appliances) and is sufficient for the majority of domestic consumers.
Type of Refrigerant Fluid
R290

Energy Class

Energy Class (35ºC)
A+++
Energy Class (55ºC)
A++
COP (7ºC - 35ºC)
-

COP (7ºC - 35ºC)

(Coefficient Of Performance) is the measurement that shows how efficient our pump is (in terms of heating) in relation to the amount of energy it consumes. The higher the efficiency rating, the more efficient our pump is.
EER (7ºC - 35ºC)
-

EER (7ºC - 35ºC)

(Energy Efficiency Ratio) is the measurement that shows us how efficient our pump is in cooling. The higher the efficiency rating, the more efficient our pump is.
Outdoor Unit Noise Level
-

Outdoor Dimensions

Length
1385 mm
Height
945 mm
Length
526 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
