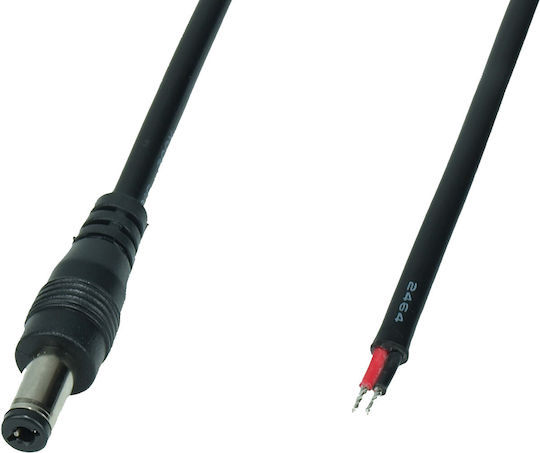

MPL-POS DC Cable YTLYp0.5 with Female Plug 2.5/5.5 L=500mm

The POS DC power cable YTLYp0.5 is suitable for audio installations/speaker systems, alarm and intercom systems, as well as for home automation and LED lighting systems and maintenance.

Features:

• Connection type (output): plug 2.5x5.5x10 mm (inner diameter / outer diameter / length)
• Connection type (input): 5 mm length tinned wires
• Cable length: 500mm
• Cable diameter: 2x0.5mm²
• Cable construction: pure copper conductor, flexible, multi-strand conductors
• Sheath: PVC - double insulation
• Inner conductor: Cu
• Cable cross-section: 4.2 mm
• Outer color: black / inner: black & red

Electrical specifications:

• Rated voltage: 0 - 60V
• Rated current: 3A
• Insulation resistance: >100MΩ @ 300Vdc
• Insulation thickness: 0.4mm
• Maximum cable resistance: 0.039Ω/m
• Operating temperature: -20°C ÷ 80°C

Safety: RoHS 2015/863, LVD 2014/35/EU

Package contents: 1 x MPL-POS DC Cable YTLYp0.5 with Female Plug 2.5/5.5 L=500mm
