Product Number

HM121MRS.UA40

Technical Specifications

Rated Thermal Power (7ºC - 35ºC)

12 kW

Maximum Water Temperature

65 °C

Heating Type

Air to Water

Heating Type

Air to Water

They use air as a source of heat, and water as a means of transportation, to channel cooling or heating into the space.

System Type

Monoblock

System Type

Monoblock

In the monoblock system, all individual components (such as the compressor, heat exchanger, fans, etc.) are integrated into a single unit, which is placed in an external space. Pros: Easy installation and direct connection to the water system. Cons: The pipes and heat exchanger are located externally, resulting in heat loss or, in worse cases, due to extreme weather conditions (such as freezing), there is a possibility of the heat exchanger or pipes breaking.

Cooling

Yes

Domestic Hot Water

with Domestic Water Supply

Domestic Hot Water

with Domestic Water Supply

Includes a container for producing hot water for use.

Power Source

Single Phase

Power Source

Single Phase

The voltage of the single-phase current is 220-230V (the same as the voltage required by household appliances) and is sufficient for the majority of domestic consumers.

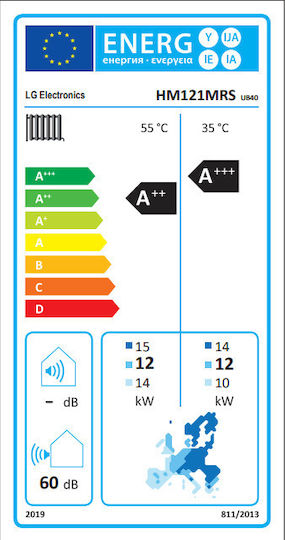

Energy Class

Energy Class (35ºC)

A+++

Energy Class (55ºC)

A++

COP (7ºC - 35ºC)

-

COP (7ºC - 35ºC)

(Coefficient Of Performance) is the measurement that shows how efficient our pump is (in terms of heating) in relation to the amount of energy it consumes. The higher the efficiency rating, the more efficient our pump is.

EER (7ºC - 35ºC)

-

EER (7ºC - 35ºC)

(Energy Efficiency Ratio) is the measurement that shows us how efficient our pump is in cooling. The higher the efficiency rating, the more efficient our pump is.

Outdoor Unit Noise Level

-

Outdoor Dimensions

Length

-

Height

-

Length

-
