Pipe Tee

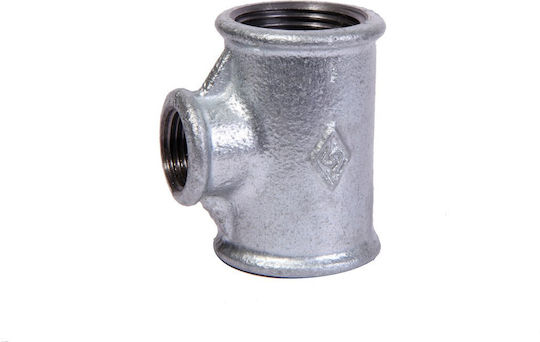

Opal Galvanized Reducing Threaded Pipe Tee 2x5/4x2" B1 Nr25 Nr 130r

Category: Pipe Tees

Cast iron fittings for the transport of non-aggressive gases and liquids, suitable for tight pipe connections, primarily used in applications such as water supply, gas, steam,...

Category: Pipe Tees

Cast iron fittings for the transport of non-aggressive gases and liquids, suitable for tight pipe connections, primarily used in applications such as water supply, gas, steam, central heating, spraying systems, and more.

Finish / Galvanizing: The fittings are available upon request with a black or galvanized finish. According to the PN-EN...

See full description See full description
21 41
22 Coins 22 Coins
Delivery Fri, 14 Aug - Thu, 20 Aug
2,50 € to a Skroutz Point
or   3,50 €   shipping cost
Do you want it with Free shipping to Skroutz Point?
From Getters 4.5 (109)
Αχαρνές, Αττικής
13 pieces
See Hose Connections on the page of Getters
What if I want to return it?

You can return it for free within 14 days. We will come to your place, return it for free, and you will get your money back.

Description

Description

Category: Pipe Tees

Cast iron fittings for the transport of non-aggressive gases and liquids, suitable for tight pipe connections, primarily used in applications such as water supply, gas, steam, central heating, spraying systems, and more.

Finish / Galvanizing: The fittings are available upon request with a black or galvanized finish. According to the PN-EN 10242 standard, the mass of the zinc coating per surface is greater than 500 g/m², corresponding to an average layer thickness of 70 µm. Both surfaces, black and galvanized, have corrosion protection that does not contain polycyclic aromatic hydrocarbons.

Working Pressure:

  • 2.5 MPa / 25 bar / at temperatures from -20°C to 120°C
  • 2.0 MPa / 20 bar / at 300°C
  • Intermediate values between 120°C and 300°C

Weight: 0.665 kg

Manufacturer

See full description

Specifications

Specifications

Specifications

Material
Galvanized
Corrugated Tube
No

Dimensions

Diameter
130 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

Category: Pipe Tees

Cast iron fittings for the transport of non-aggressive gases and liquids, suitable for tight pipe connections, primarily used in applications such as water supply, gas, steam, central heating, spraying systems, and more.

Finish / Galvanizing: The fittings are available upon request with a black or galvanized finish. According to the PN-EN 10242 standard, the mass of the zinc coating per surface is greater than 500 g/m², corresponding to an average layer thickness of 70 µm. Both surfaces, black and galvanized, have corrosion protection that does not contain polycyclic aromatic hydrocarbons.

Working Pressure:

  • 2.5 MPa / 25 bar / at temperatures from -20°C to 120°C
  • 2.0 MPa / 20 bar / at 300°C
  • Intermediate values between 120°C and 300°C

Weight: 0.665 kg

Manufacturer

Specifications

Material
Galvanized
Corrugated Tube
No

Dimensions

Diameter
130 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
