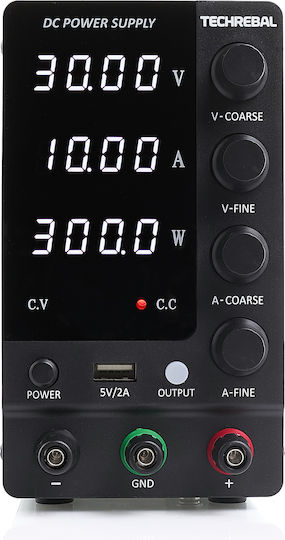

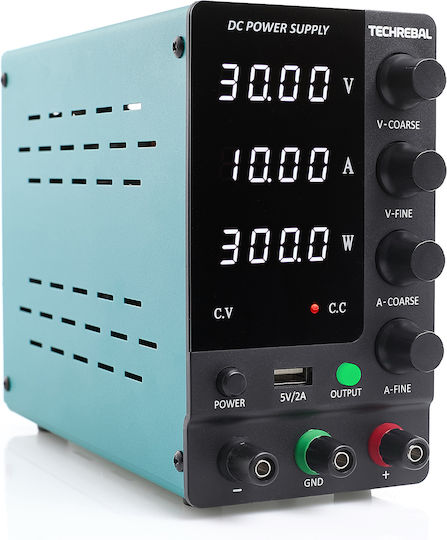

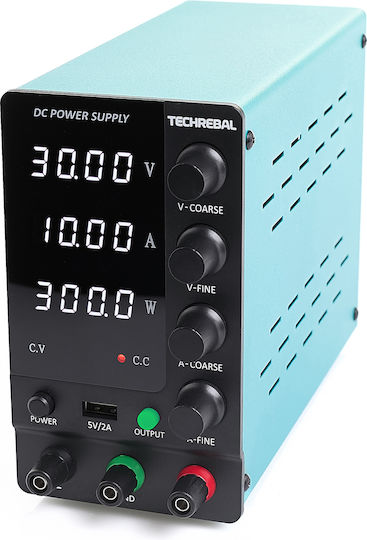

Techrebal SPS-C3010 Bench Power Supply 30V 10A USB 5V
The Techrebal SPS-C3010 power supply is an essential tool for any electronics laboratory, ideal for repairs and powering various devices. It features an adjustable output range from 0 to 30V and a maximum current capacity of 10A. Its versatility makes it suitable not only for professional service centers but also for home workshops and advanced scientific experiments.
- Smooth voltage and current regulation
- C.V. Mode: constant output voltage
- C.C. Mode: constant output current
- Clear display
- Durable construction from high-quality materials
- Simultaneous voltage and current indication on the output

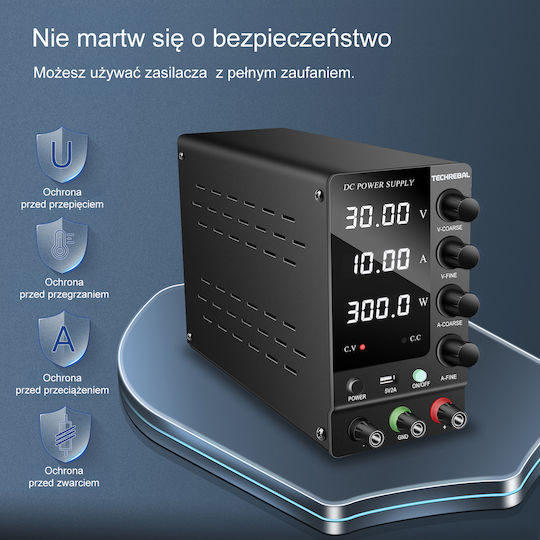

- Protection system against short circuits, overheating, and overload
- On/Off button for output voltage
- USB port for 5V 2A charging
The main advantages of this power supply are high accuracy and a clear LCD screen. It is cooled by a quiet, temperature-controlled fan that automatically activates when the internal temperature rises, quickly reducing the device's internal heat.
Specific construction features include:
- Voltage, current, and power indicators
- Power switch
- Connections for positive and negative terminals
- USB 5V 2A output
Voltage adjustment is performed via multi-turn potentiometers with an accuracy of up to 0.01V. The power supply can operate in two modes: C.V. for constant voltage and C.C. for constant current. The maximum output power is 300W (30V x 10A), and it can be connected in series or parallel with other power supplies. The compact dimensions and metal casing provide stability and insulation from other electrical influences.
Technical Specifications:
- Input Voltage: 200-240V AC / 50-60Hz
- Output Voltage Range: 0-30V
- Output Current Range: 0-10A
- Voltage Indication Accuracy: 0.01V
- Current Indication Accuracy: 0.001A
- Protections: overvoltage, overload, thermal
- Dimensions: Height 155 mm, Width 85 mm, Depth 240 mm
- Weight: 1.2 kg
Included:
- Techrebal SPS-C3010 Bench Power Supply 30V 10A

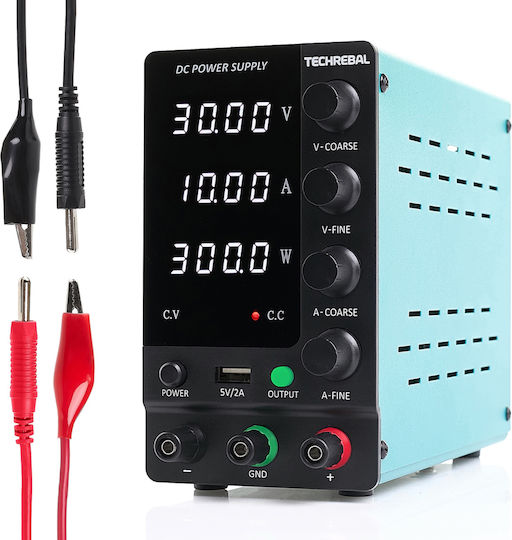

- Power cables
- Power cord
- User manual in Polish
- Channel Output
- 1 Channel
- Maximum Output Voltage
- 30 V
- Maximum Output Power
- 10 A
- Power
- 300 W
