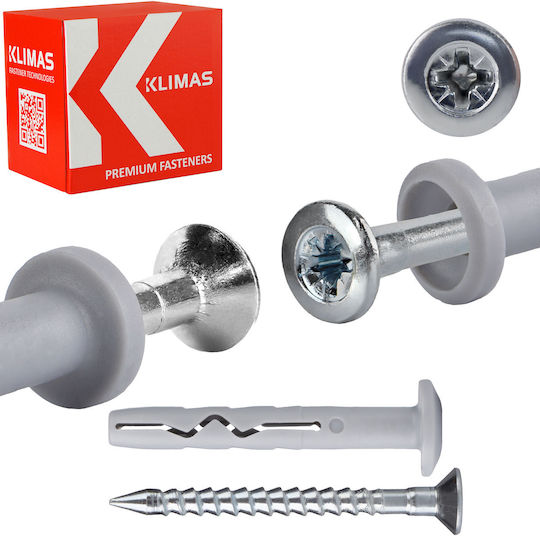

Pins with cap 8x80 mm 100 pcs. Made of polyethylene casing and a screw with a conical head made of galvanized steel. In the SMK model, the casing has a cap that ensures optimal pressure on the supported elements. Designed for non-structural multi-directional fastening of statically loaded structural elements. Pins with caps are recommended for supporting metal elements and where a larger contact surface is required. Main parameters

• Model: SMK-08080
• Pin size: 8.0x80 mm
• Screw size: 4.9x85 mm
• Maximum effective length: 40 mm
• Package: 100 pcs.
• Drive: PZ-2
• Material of pin: polypropylene
• Material of screw: galvanized steel

Features and benefits

• Increased head diameter with PZ guidance - Provides significantly better pressure on the supported elements.
• Conical screw head - More massive with significant reinforcement under the head, ensuring flat fastening with the surface of the element being attached.
• Optimally designed expansion zone - Guarantees perfect expansion contact with the substrate.
• Quick and easy installation via - Reduces assembly time.

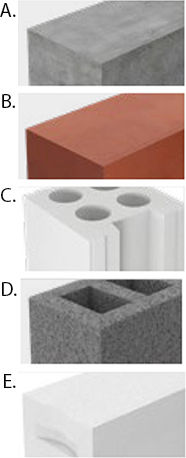

Substrates and application examples

• Concrete
• Solid ceramic brick
• Cavity silicone brick
• Light synthetic elements
• Solid silicone brick

Pins can be installed in profiles for false ceilings systems, profile installation using connecting elements, drywall wall profile installation, and wooden partition walls installation. Product specifications

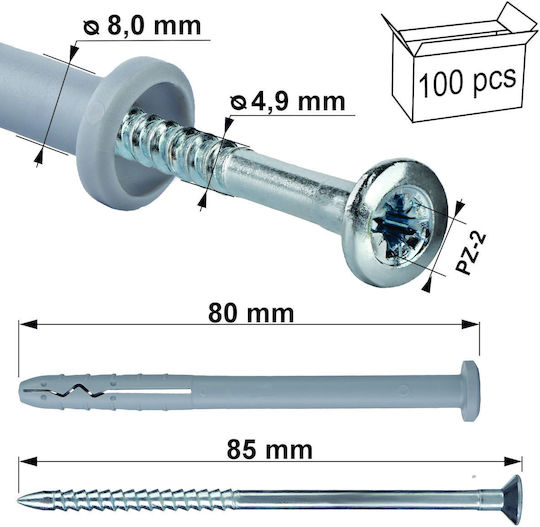

• Pin diameter: Ø 8.0 mm
• Pin length: 80 mm
• Screw diameter: Ø 4.9 mm
• Screw length: 85 mm
• Maximum effective length: 40 mm
• Drive: PZ-2
• Quantity per package: 100
• Pin material: polypropylene
• Screw material: galvanized steel
• Installation type: via installation
• Substrate: concrete, solid ceramic brick, cavity silicone brick, light synthetic elements, solid silicone brick

Certifications:

European ETA-19/0156 certificate - guarantees higher quality, National Technical Assessment ITB-KOT-2018/0528 Issue 2. The provided anchors are characterized by the highest quality and can be safely used in construction.

Installation instructions

Before installation, identify the substrate where the connector will be installed and compare the loads that the connector will bear with the load capacities specified in the product data sheet or in the European technical assessment. The appropriate length of the anchor must be selected so that the expansion zone remains within the structural wall material. The drilling method should be controlled (holes in perforated wall structures and in a substratum of aerated concrete must be drilled with a rotary drill without impact). The diameter of drilled holes must match the diameter of the anchors used. Holes in solid substrates should be approximately 10 mm deeper than the embedment depth of the base. Holes in solid materials should be cleaned from residues with forward and backward movement of the drill at reduced speed. Then, a plastic casing is inserted into the hole and the screw is driven until the point of...
