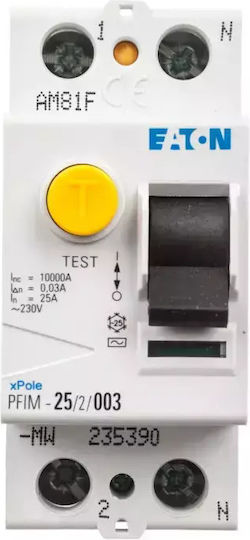

The board switch has the following technical specifications:
- Frequency: 50 Hz
- Sensitivity: AC
- Length: 85 mm
- Installed depth: 69.5 mm
- Number of poles: 2
- Optional additional equipment: Yes
- Selective protection: No
- Impulse withstand current: 0.25 kA
- Rated current: 25 A
- Protection rating (IP): IP20
- Width: 75 mm
- Width expressed in number of modules: 2
- Weight: 0.22 kg
- Enclosure dimensions (according to DIN 43880): 1
- Height: 40 mm
- Short release delay: No
- Rated breaking capacity: 0.5 kA
- Rated residual current: 0.03 A
Specifications
- Number of Poles
- 2
- Rated Voltage
- 25 A
Features & Functions
- WiFi
- No
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
