WITH 3 AIR CHAMBERS
- Double-walled fireplace made of 4mm steel.
- 4mm high-strength ceramic glass up to 750°C, from the German company SCHOTT.
- Telescopic door guides, latest technology from the German company SCHOCK.
- Internal lining with removable cast iron plates.
- Available with 2 sliding-opening doors or with 1 sliding-opening door & 1 opening door.
- Door lock for greater safety.

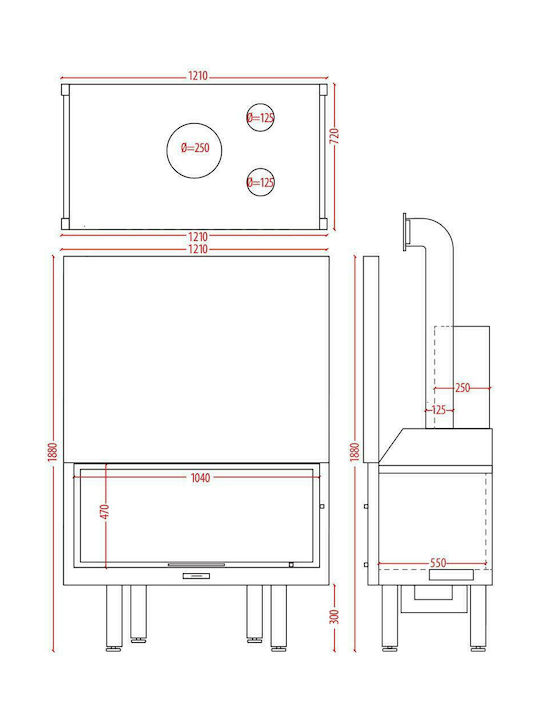

External Dimensions cm (height, width, depth): 183X121X72
Internal Dimensions cm (height, width, depth): 47X104X55
Door Opening Dimensions cm (height, width): 39X103.5
Weight (kg): 390
Chimney diameter (mm): Φ250
Number of hot air outlets Φ125: 2+2 (optional)
Firebox lining: Cast iron
Total thermal power (kw/h): 298
CO emissions (13%O2): 0.2800 (<1)
Efficiency (%): 70.5
Primary air: YES
Secondary air: YES
Tertiary air: YES
Hourly consumption (kg/h): 8
- Product Number
- A115FD2
Product Details
- Cassette
- No
- Air Ηeater
- No
- Air Duct Connection
- No
- Radiator
- No
- Chimney diameter
- 250 mm
- Material
- Steel
- Fuel
- Wood
- Weight
- 415 kg
Performance
- Energy Class
- A
- Total Power
- 28 kW
- Power in the Air
- 28 kW
- Performance Level
- 70.5 %
- Water Consumption
- 9.15 kg/h
Attributes
- Windows
- See-Through
- Container
- Closed Expansion Tank
- Doors
- with Sliding Cabinet Doors
Dimensions
- Height
- 1830 mm
- Width
- 1210 mm
- Length
- 660 mm
