The Menabo Elefant XL Car Roof Bars are compatible with the Volvo XC90 (Raised Bar) from 2014 and provide increased flexibility for transporting luggage with a maximum load capacity of 75 kg. The bars have a rectangular cross-section and are suitable for all roof rack systems with "U" type bases (roof boxes, bike racks, ski mounts, kayak/canoe carriers, etc.).

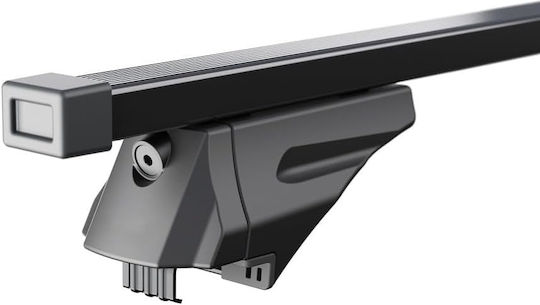

The bar set includes all necessary components for installation on the vehicle's integrated longitudinal rails. The roof system includes:
- 2 x Copper bars
- 4 x Support systems for longitudinal rails (pre-installed)
- 1 x Allen key (no additional tools required)

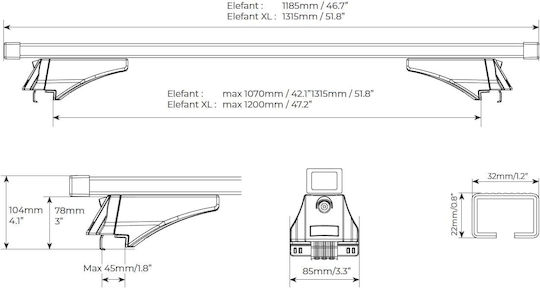

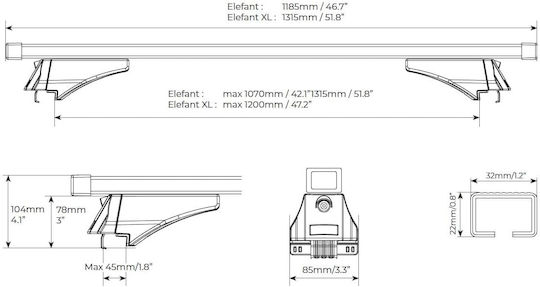

Technical specifications:
- Bar length: 1350 mm
- Bar height: 28 mm
- Bar width: 48 mm
- System weight: 3.9 kg
- Material: steel
- Diameter of T-slot 20 mm along the bar: NO
- Anti-theft system: No

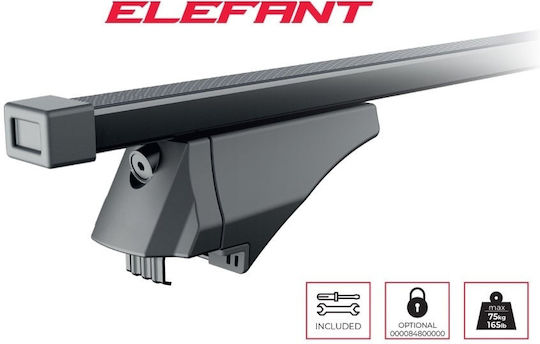

- Maximum load capacity: 75 kg
- Bar color: Black
- Tested according to TUV and ISO/PAS 11154:2006 (paragraphs 5.2.5, 5.3.5)
- Complies with DIN 75302
For proper and quick installation, please use the user guide included in the packaging. The maximum load capacity may vary depending on the make and model of the vehicle. It is recommended to refer to the technical specifications provided by the vehicle manufacturer.
Dimensions
- Set
- with Roof Rack Legs
- Material
- Steel
Brand
- Volvo
- XC 90
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
