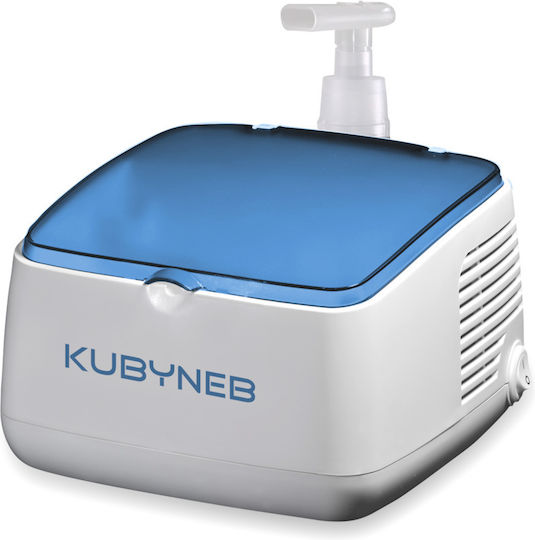

KUBYNEB Nebulizer, suitable for home care.

Technical Specifications:

• Continuous operation: The device operates continuously, without loss of performance.
• Fast & Efficient: 7 ml capacity, operates with 2.5 ml medication in 4 minutes (0.5 ml/min).
• Storage space: Designed to store accessories and medications in a special large compartment.
• Quiet: Noise level approximately 60dB.
• Highly efficient nebulization: MMAD: 3.25 μm, respirable fraction >70%, residual volume: 0.40 – 0.50 ml.
• Maximum Pressure: 300 kPa (3.0 Bar).
• Operating Pressure: 130 kPa (1.30 Bar).
• Maximum Flow: 16 l/min.
• Operating Flow: 5.2 l/min at 130 kPa.
• Nebulization Rate: 0.50 ml/min (with 4 ml of NaCl 0.9% solution).
• Mean Mass Aerodynamic Diameter: 3.25 μm.
• Inhaled Ratio: 70%.
• Power Supply: 230V~ / 50Hz.
• Consumption: 140 VA.
• Operating Conditions: Continuous.
• Noise Level: 60dB.
• Device Weight: 1.45 Kg.
• Device Dimensions: 15.5 x 10.0 x 10.5 cm.

Package Contents:

• Air tube
• Power cable
• 2 Filters
• Carrying bag
• Ampoule section
• Adult mask
• Child mask
• Mouthpiece
• Nasal accessory (non-invasive)
• User manual
