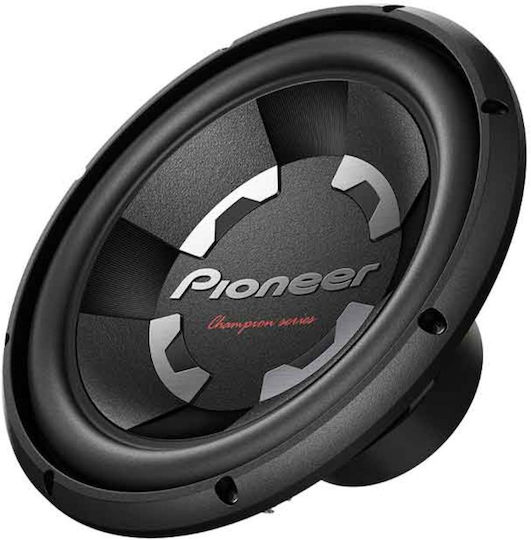

Pioneer Champion Series TS-300S4 Subwoofer
The Pioneer Champion series subwoofers are powerful and durable, suitable for high power and volume levels without compromise in sound quality. They feature dual spiders and a motor mechanism that allows them to produce deep and dynamic sounds.
The unique Pioneer Dust Protection design prevents dust intrusion and ensures the performance and reliability of the subwoofer. Its technology includes a proprietary IMPP cone composite material and a rigid 3D cone design, with large dual magnets.
The Pioneer TS-300S4 is a 30cm subwoofer with a single 4-ohm voice coil, delivering a maximum power of 1400 W and an RMS power of 400 W. It can be used in a enclosure or free-air setup.
- Size: 30 cm
- Maximum Power: 1400 W
- RMS Power: 400 W
- Sensitivity: 93 dB
- Impedance: 4 Ω
- Mounting Depth: 147 mm
- Cutout Diameter: 281 mm
- Woofer Material: IMPP Type of Voice Coil: Round Copper Wire 4-Section Type of Voice Coil Bobbin: Polyimide
- Lowest Resonant Frequency: 27 Hz
- Magnets: Ferrite (dual)
- Weight: 4.4 kg
- Recommended Enclosure: 35.38 liters (24.1 liters to 49.5 liters)
- Recommended Enclosure: 1.25 ft³
- Product Number
- TS-A300S4
- Power (RMS)
- 1400 W
- Functionality
- Passive
- with Box
- No
