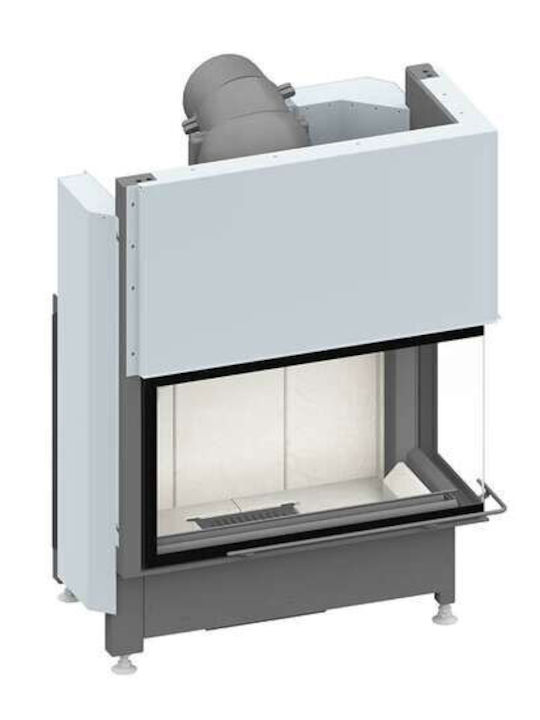

The fireplace inserts from Camina Schmid are manufactured with high-quality standards. The models from the German company stand out for their optimal combustion, simple yet effective operation, and ceramic glass that remains clean with the clean air supply system (air curtain). The fireplace inserts can be installed in any desired position, as long as there is a chimney outlet.
Some features of the fireplace inserts:
- The chimney outlet consists of 3-4 pieces of cast iron, articulated, allowing for adjustment depending on the installation.
- Opening for cleaning access.
- Receptacles for various digital meters.
- Exhaust sizes: Ø150, Ø160, Ø180, and Ø200mm.
- Available doors with hinges, left or right opening, or with a sliding door (guillotine) upwards.
- Recognizable designs such as: Front design Kristall, Front design Kristall+, Front design Anthracite, Frame system (BRS).
- Double glass ensuring 30% less heat loss.
- Interior lining made of white or anthracite fireclay, or cast iron (extra charge).
- Required supply pressure: 12 Pa.
- Flue gas mass flow: 8.6 g/s.
- Flue gas temperature: 302 °C.
Specifications:
- Door type: Kristall
- Nominal power: 9 kW
- Power range: 4.2-9.2 kW
- Energy efficiency: > 78%
- Insulation thickness: 60 mm
- Combustion air inlet: Ø 125 mm
- Recommended log length: 33 cm
- Weight: 280-320kg
- Heat emission: 50% through the glass
- Heat emission: 50% convection power
- Door length: 84+34cm
- Door height: Available in 51cm, 57cm
Product Details
- Cassette
- No
- Air Ηeater
- No
- Air Duct Connection
- No
- Radiator
- No
- Chimney diameter
- 125 mm
- Material
- Steel
- Fuel
- Wood
- Weight
- 320 kg
Performance
- Energy Class
- A
- Total Power
- 9 kW
- Power in the Air
- 9 kW
- Performance Level
- 78 %
- Water Consumption
- 3.84 kg/h
Attributes
- Windows
- Right Corner
- Container
- -
- Doors
- with Sliding Door
Dimensions
- Height
- 1380 mm
- Width
- 955 mm
- Length
- 565 mm
