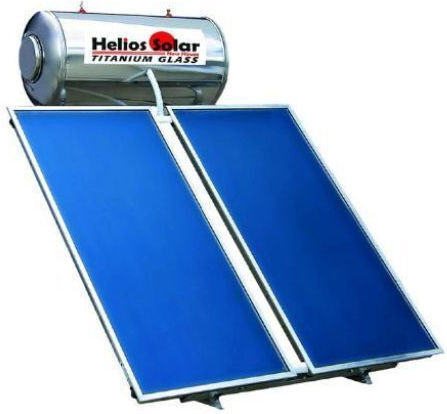

The solar kits consist of the water boiler, the selective collectors, the base of the solar system, and all the assembly and installation materials. The selective solar water heaters NEW HOUSE HELIOS SOLAR are used for heating domestic water.
- Solar Boiler:
- Boiler casing made of stainless steel.
- Water tank made of special 2.5 mm steel, enamelled with double successive layers of hard glass fired at 830°C.
- Strong insulation made of polyurethane 50kg/m3.
- Comes with a pre-installed 4kw resistance.
- Brass connection nipples.
- Collector:
- Collector frame made of specially shaped aluminum profile for complete sealing and robustness.
- Insulation made of compressed mineral wool 50mm.
- Shatterproof polymerized glass 4mm with maximum permeability and resistance to sudden temperature changes.
- Selective heat-absorbing surface from Full Plate by the German company Mirosol.
- High purity copper water skeleton, welded automatically for full heat induction with the selective heat-absorbing surface.
- Certified according to Keymark.
- Collector dimensions: 148*101 mm.
- Solar water heater base:
- Base made of galvanized steel.
- Galvanized sheet metal with 2mm thickness without seams.
- Product Number
- NHS250400T.
- Nominal Capacity
- 250 lt
- Container Material
- Glass
- Operation Mode
- Double Energy
- Collector Type
- Selective
- Titanium Collector
- No
- Collector Surface
- 4 m²
- Roof Tile
- No
- Low Height
- No
- Horizontal Collector
- No
- Compact
- No
- Heat Pump
- No
- Wi-Fi
- No
