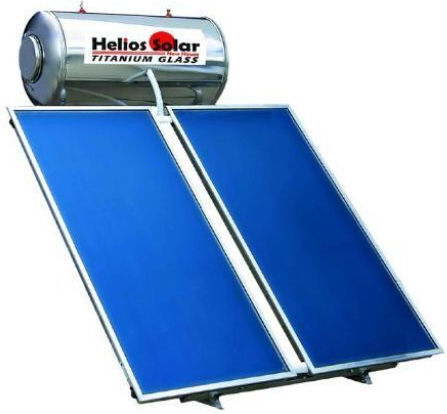

The solar sets include the water boiler, the selective collectors, the base of the solar system, and all the assembly and installation materials. The selective solar water heaters NEW HOUSE HELIOS SOLAR feature boilers of 120lt, 150lt, 200lt, 250lt, and 300lt combined with certified collectors. They are used for heating domestic water.
The use of selective absorbers allows the achievement of higher water temperatures and greater efficiency even in winter, reducing electricity consumption costs.
-
Solar Boiler:
- Boiler casing made of stainless steel.
- Water tank made of special 2.5 mm steel, enameled with double consecutive layers of hard glass fired at 830°C.
- Strong insulation made of polyurethane 50kg/m3.
- Pre-installed 4kw resistance.
- Brass connection nipples.
-
Collector:
- Collector frame made of specially shaped aluminum profile for complete sealing and sturdiness.
- Insulation made of compressed rock wool 50mm.
- Unbreakable 4mm polymerized glass with maximum permeability.
- Selective thermal absorptive surface from Full Plate by the German company Mirosol.
- High-purity copper hydraulic skeleton, welded automatically.
- Certified by Keymark.
- Collector dimensions: 148*101 mm.
-
Solar water heater base:
- Base made of galvanized steel.
- Galvanized sheet metal with 2mm thickness without seams.
- Product Number
- NHS250400T3.
- Nominal Capacity
- 250 lt
- Container Material
- Glass
- Operation Mode
- Triple Energy
- Collector Type
- Selective
- Titanium Collector
- No
- Collector Surface
- 4 m²
- Roof Tile
- No
- Low Height
- No
- Horizontal Collector
- No
- Compact
- No
- Heat Pump
- No
- Wi-Fi
- No
