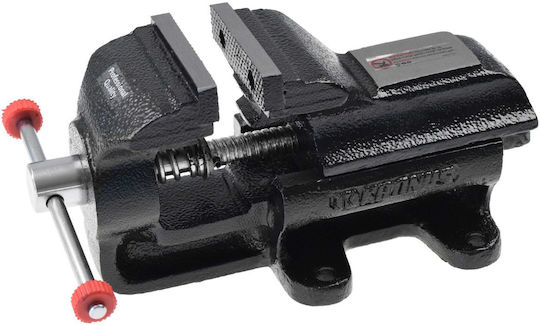

The vise is made from special durable cast iron (SG grade 500/7 gray cast iron). The graphite cast iron is derived from pig iron as its basis, with the addition of manganese and magnesium alloying elements. SG grade 500/7 means 500 N/mm² tensile/flexural strength, and 7 indicates 7% elongation.

The cast iron graphite vise is twice as efficient compared to a standard cast iron vise, as it is harder, more durable, deforms less easily (stretches more before breaking), holds much more steadily (better compression resistance), and lasts twice as long.

• Rear sliding of the movable jaw.
• The static design of the front jaw helps transfer additional operational force and is much more durable compared to regular designs.
• Parallel vises ensure stable holding of parts of different sizes during machining.
• Handle made from forged steel C25.
• Coating: painted.
• Jaws with serrated surface, heat-treated with a built-in anvil.
• Jaws made from steel C55 with 4 mounting points on the bench.
• Special durable cast iron (nickel graphite).
• KRONUS logo cast into the body.
• Shaft made from forged steel C25.

Net weight: 5.90 kg

Overall length: 220 mm

Overall width: 115 mm

Jaw size: 80 mm

Jaw opening: 80 mm

Holding depth: 80 mm

Total height: 135 mm

Clamping handle length: 54 mm

Handle width: 39 mm

Jaw hardness: HRC 35+

Clamping force: 17 kN

Manufacturer: Kronus

Product category: Vises
