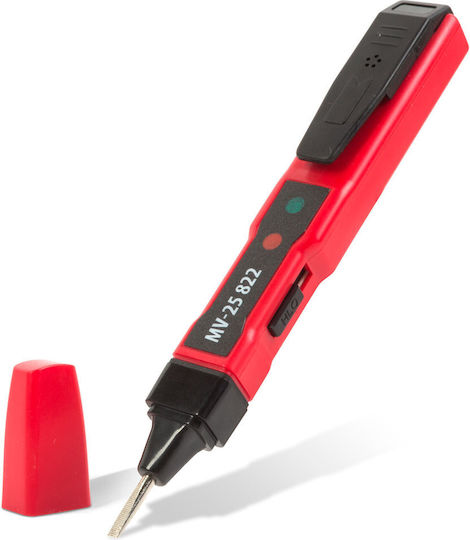

Voltage detector that combines the advantages of a traditional phase detector and non-contact voltage detectors. Suitable for detecting AC voltage in sockets, cable channels, switches, and cables.

It features a convenient shape that allows it to be carried in a pocket. It is a traditional phase detector that enables easy and quick checking of which cable is live. Suitable for voltage detection between 70 - 250 V AC.

Its features include:

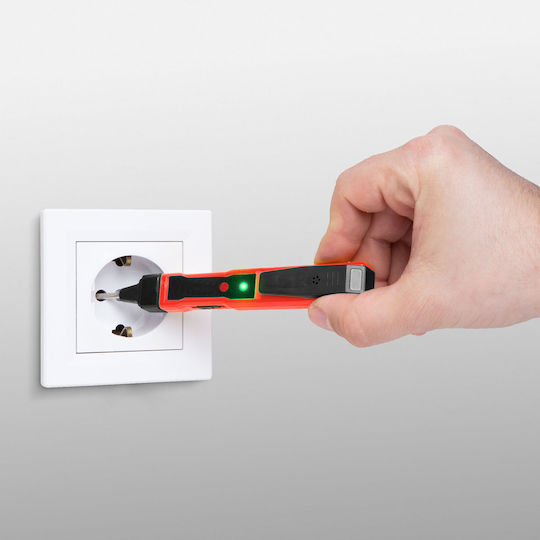

• Voltage detection: If the light turns on, the cable is live.
• Notification: If the light does not turn on and a sound is heard, the voltage in the tested cable is below 70 V AC.

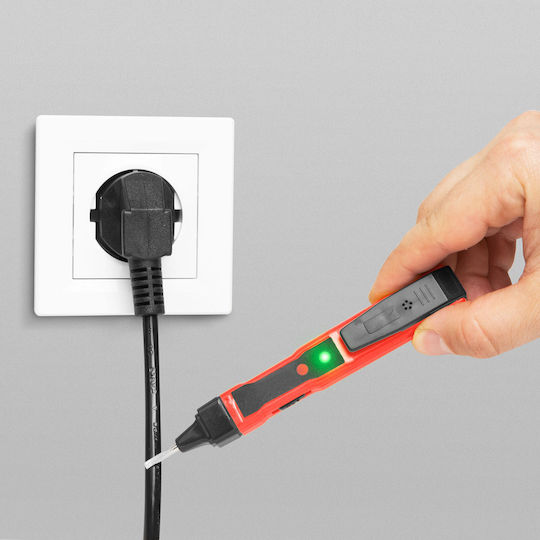

• Non-contact: Used for non-contact detection up to 70 - 1000 V AC, minimizing the risk of electric shock.
• Polarity and continuity test: Easily performed with the position selector.
• Safe detection: LED and audible alert present when voltage is detected.

Warnings:

• The detector cannot be used for voltages higher than the specified rated voltage.
• Accurate indication is ensured only at operating temperatures of -10 to +50°C and frequencies of 50-500 Hz.
• Signal sensitivity may be affected by adverse lighting conditions.
• Before use, verify the proper functioning of the detector.
• Do not use the detector in the presence of moisture.

Technical specifications:

• Voltage detection range (contact): 70 V - 250 V (AC 50/60 Hz)
• Voltage detection range (non-contact): 70 V - 1000 V (AC 50/60 Hz)
• Polarity test: 3 to 50 V DC
• Continuity test: O = 0 - 5 MΩ, L = 0 - 50 MΩ, H = 0 - 100 MΩ
• Contact protection class: LR41 / 157 / V13GA / AG13 / A76 (accessory)
• Dimensions: 145 x 20 x 17 mm
• Weight (with battery): ~15 g
