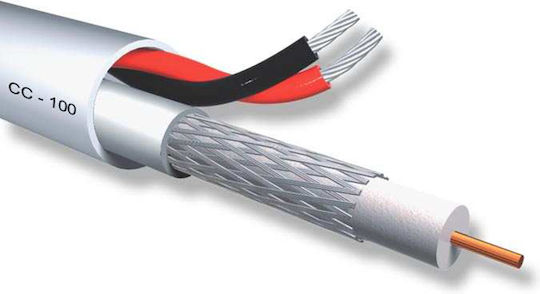

The ACCORDIA CCTV cable CC-100 is equipped with the following technical specifications:
- Central Conductor: Φ 0.60mm pure copper
- Insulation: Φ 2.70mm skin-foam-skin gas injected PE
- Outer Conductor: tinned copper braid
- Outer Sheath: Φ 3.75mm PVC bright white
- Characteristic Impedance: 75 +/-3 Ohm
- Nominal Capacitance: 52 pF/m
- Propagation Velocity (V/C): 0.85
- Sheath Test Voltage: 3 KV
- Conductor Resistance DC: Central conductor 61.5 Ohm/km, Outer conductor 50.0 Ohm/km
Cable length: 100m
- Type
- Cable
