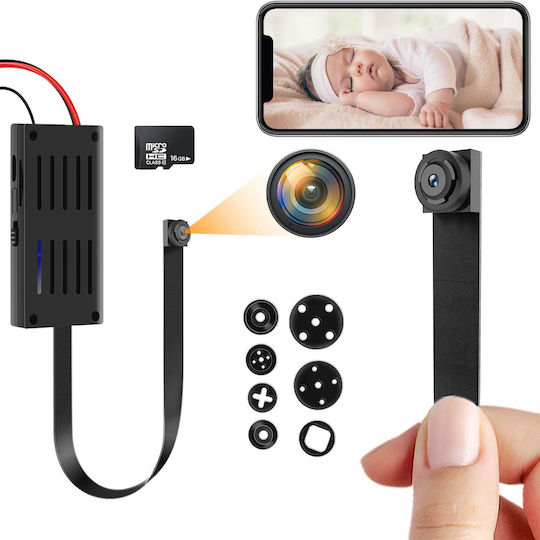

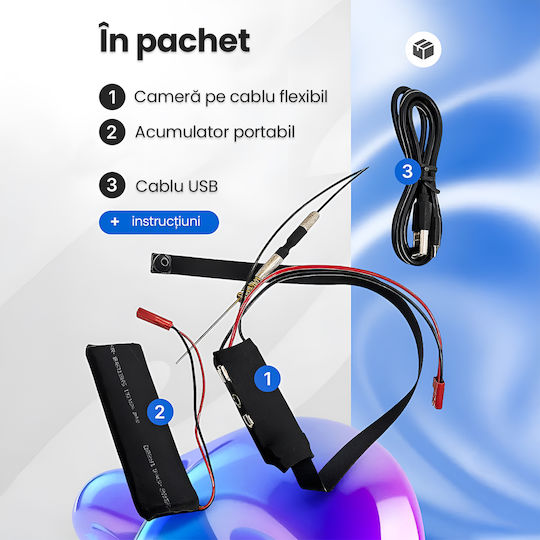

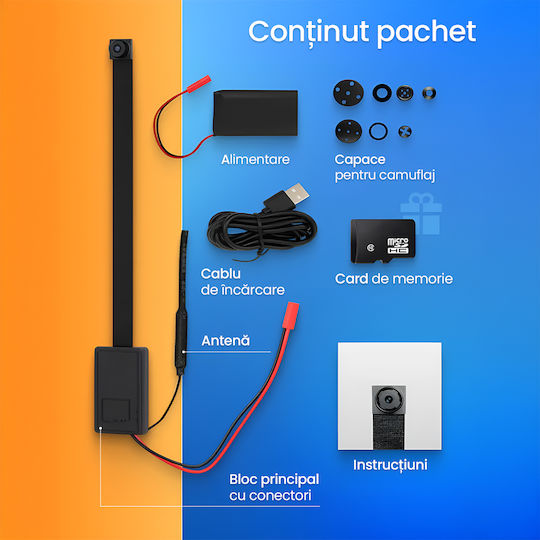

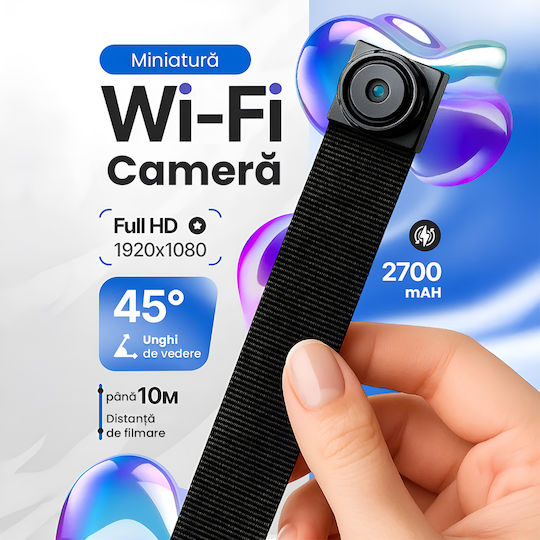

The flexible mini cable camera is designed for spaces where the installation of traditional cameras is not possible. Unlike standard WiFi cameras, which have all components housed in a rigid body of at least 3-5 cm, the Full HD 1080P WiFi camera uses a cable architecture. The mini camera measuring 8mm x 8mm is connected via a flexible 23 cm cable to the main unit containing the WiFi circuit and a 2700mAh battery.

Main features:

• Compact design: The 8mm camera can be placed in extremely narrow spaces.
• Flexible cable: The 23cm cable allows adjustment of angle and orientation without moving the main unit.
• Decorative buttons: Provided for complete camouflage.
• App control: The Tuya Smart app allows live streaming, motion detection, and access to recordings.

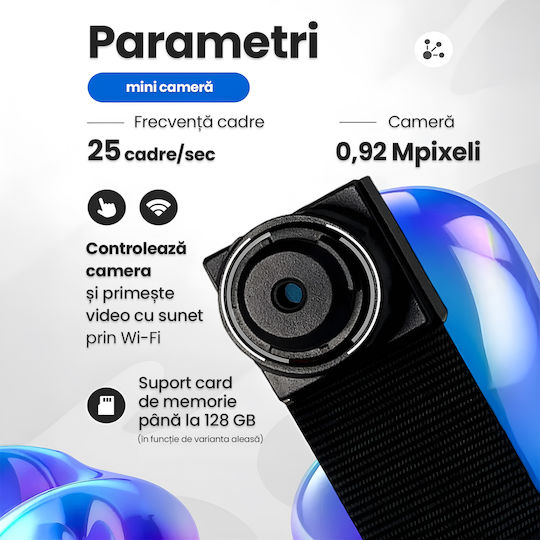

Technical specifications:

• Video system: Resolution 1920x1080 pixels (Full HD 1080P).
• Image sensor: CMOS 0.92 Megapixels.
• Frame rate: 25 FPS fixed.
• Video compression: H.264 for storage efficiency.
• File format: AVI with universal compatibility.
• Viewing angle: 45 degrees diagonal.
• Effective distance: 10 meters for clear subject recognition.

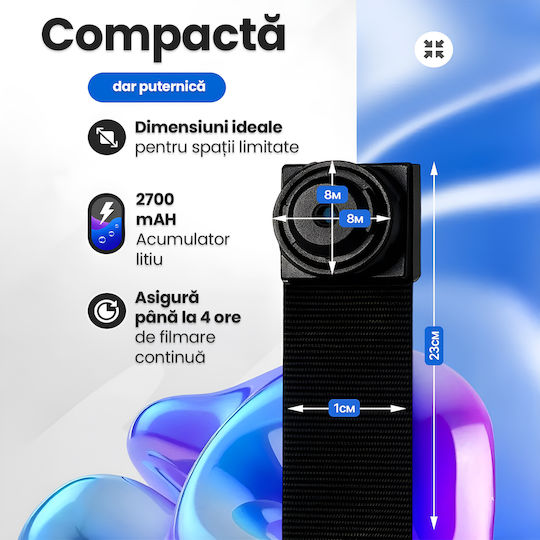

• Camera dimensions: 8mm x 8mm x 3mm (weight under 5 grams).
• Cable length: 23cm, flexible with 180 degrees orientation.
• Total system weight: 50 grams including full battery.
• Material: Matte black anti-reflective ABS plastic.

Connectivity:

• WiFi standard: IEEE 802.11 b/g/n at 2.4GHz.
• Effective range: 30-50 meters indoors.
• Secondary connection method: Connects to existing WiFi router.

Power supply:

• Battery type: Rechargeable lithium-polymer.
• Nominal capacity: 2700mAh at 3.7V.
• Total energy: 9.99Wh.
• Continuous recording autonomy: 4-5 hours.
• Full charging time: 2-3 hours with 5V/1A adapter.
