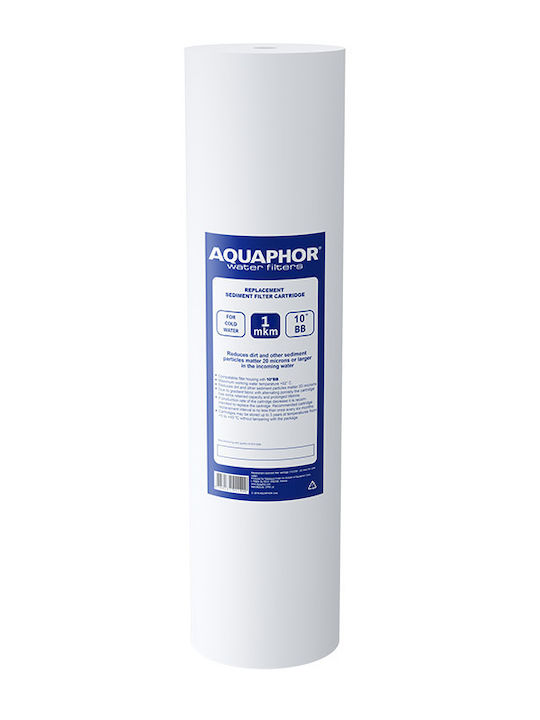

Replaceable polypropylene filter for pre-filter housings for cold water, compatible with Aquaphor Gross 20", UST-M, and other manufacturers (BB 20" / BigBlue 20" standard). The filter is available in micron ratings of 20, 10, 5, or 1 micron and is capable of effectively retaining insoluble impurities in water such as sand, rust, mud, and other sediments.
The filter's gradient structure increases the capacity to retain mechanical particles, extending its service life. The operating mechanism includes:
- Dirty water passes from the outside of the filter to the center.
- Mechanical particles are trapped in the micropores, with the diameter decreasing towards the inside.
- Larger particles are retained on the surface, while finer ones are trapped in the deeper layers.
Technical characteristics:
- Replacement: at least once every 6 months.
- Dimensions: 510±1 x 110±0.5 mm.
- Maximum flow rate: up to 60 liters/minute.
- Maximum operating temperature: +38°C (100.4°F).
Recommendation for micron filter: For domestic use, the recommended choice is a 5 micron filter for effective protection against sand, mud, rust, and sediments. In the case of very dirty water, the installation of a second 20 micron polypropylene filter is necessary.
Replacement indication: A decrease in pressure or flow rate is a sign that the filter is clogged and needs to be replaced.
Dimensions
- Filter Material
- Polypropylene
- Micron Rating
- 1 μm
- Compatibility
- 20"
- Set
- No
- Pieces
- 1 pcs
Filter Lifetime
- Replacement Interval
- -
