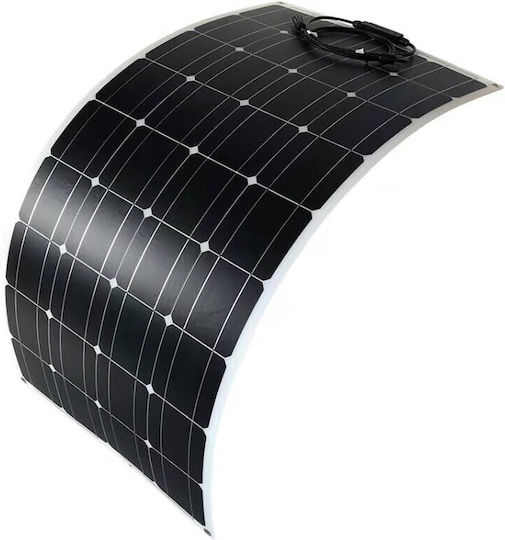

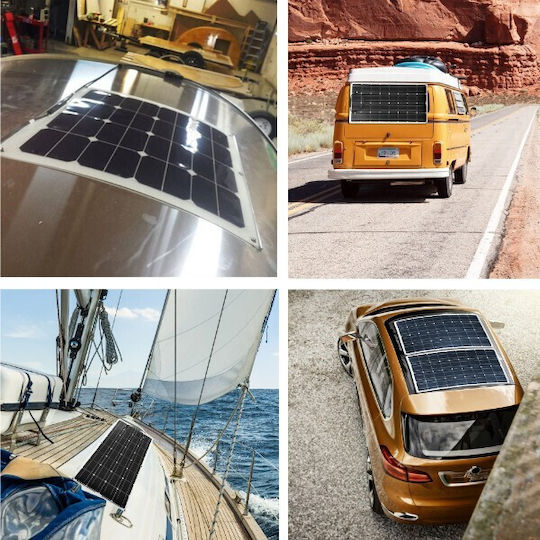

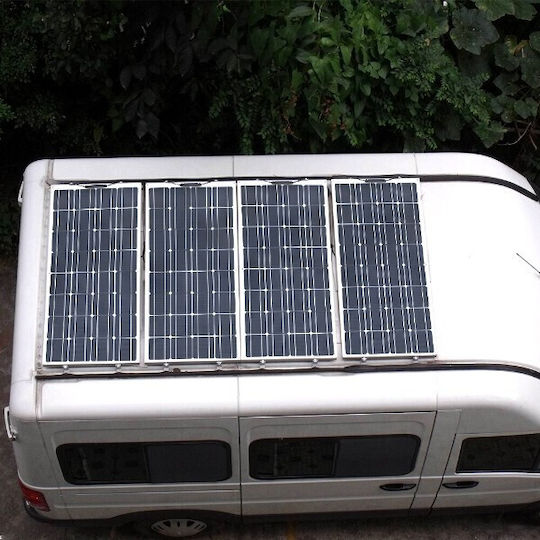

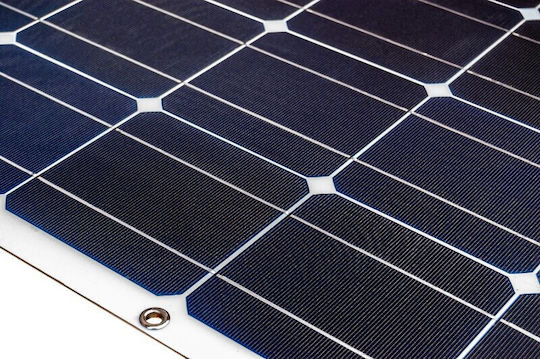

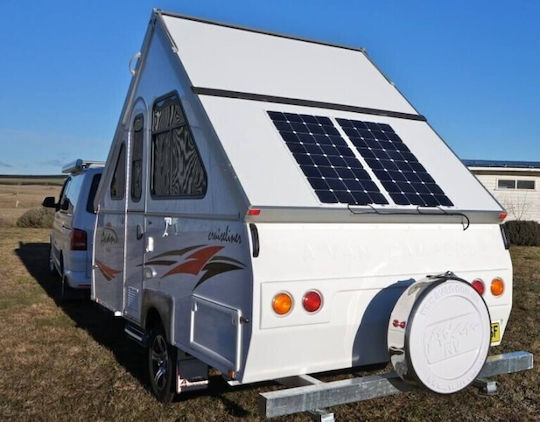

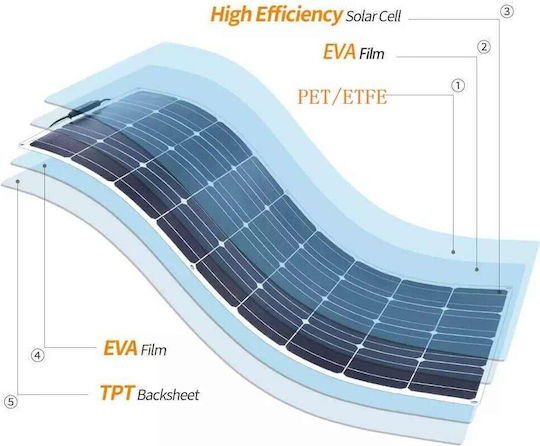

The photovoltaic panel VOLT FLEXI 200W Monocrystalline features a high cell conversion efficiency of over 22%. The panel is protected by an ETFE membrane and a laminated EVA membrane. It is water-resistant and ideal for system installations.

Quality tests:

• Electrical insulation test
• Resistance test to external conditions
• Hot spot test
• UV resistance test
• Resistance test to temperature changes and hail impact
• Moisture resistance test
• Durability test
• Mechanical strength test

Technical specifications:

• Maximum power Pmax (W): 200W
• Tolerance (%): 3%
• Open-circuit voltage Voc (V): 22.46
• Maximum power voltage Vmp (V): 18.72
• Maximum power current Imp (A): 10.68
• Short-circuit current Isc (A): 11.54
• Module efficiency (%): 18%
• Solar cell efficiency (%): 22%
• Rated fuse current (A): 15
• Protection class: IP65
• Maximum panel system voltage (V): DC 1000
• Operating temperature range: -40°C to 85°C

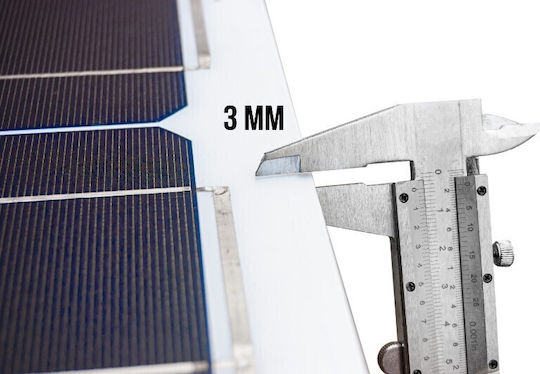

• Dimensions: 700 x 1585 x 3 mm
• Weight: 4.6 kg
