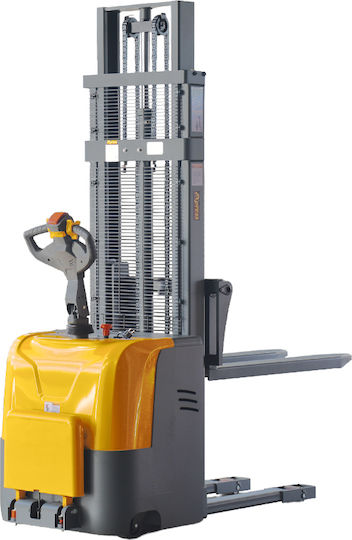

The electric forward-backward movement and the electric lift-lower forks provide efficiency in load handling work.
- Low speed operation: up to 2.5 km/h for ease in tight spaces.
- Lifting capacity: 1.5 tons at a height of 3 m.
- Operating duration: 4-6 hours with a fully charged battery (charging time: 10 hours).
- Total height of the forklift: 3560 mm with raised forks (h4) and 2090 mm with lowered forks (h1).
- Wheels: PU.
- Drive motor: Brushless (AC) and lifting motor (DC).

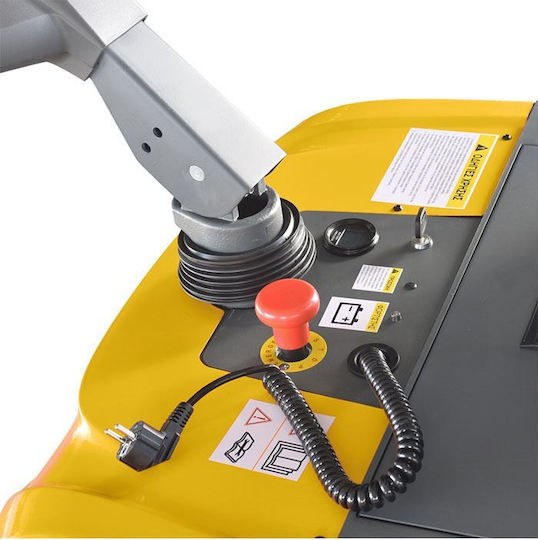

- Electronic control system: battery with integrated 24Volt/15A charger.
- Fork adjustment: manual height and left-right adjustment after a 9 cm lift.
- Oils: Supplied with 85W-90 oil for the drive reducer and ISO 46 hydraulic oil for the hydraulic system.
Special notes:
- Before first use, it is recommended to fully charge the battery until the charging indicator turns green.
- For the first usage cycle, operate the forklift up to 70% and then recharge.
- Do not use the forklift with a discharged battery.
- Type
- Stacker
- Max Load Capacity
- 1500 kg
- Collapsible
- No
