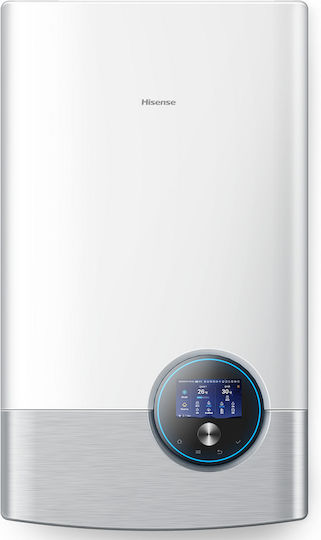

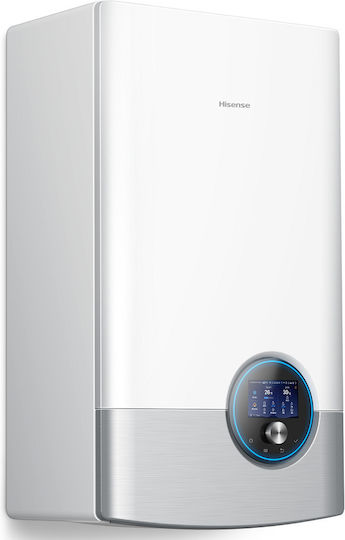

The Hisense Hi-therma AHM-140HEDSAA heat pump offers a power of 14 kW, suitable for large residences or commercial spaces up to 140 m². Thanks to air-to-water technology, it draws heat from the outside air and transfers it indoors, providing efficient heating and cooling. It requires a three-phase supply of 340-380V, ideal for higher consumption, ensuring energy savings and reduction of heating costs.
The system operates with a split design, with the indoor unit including the circulator and heat exchanger, while the outdoor unit houses the compressor and fan. This allows flexible installation and different settings at will in each space. The maximum water temperature reaches 55°C, making it suitable for combinations with underfloor heating systems, thus offering the best possible performance.
- Nominal Heating Power (7ºC - 35ºC): 14kW
- Maximum Water Temperature: 55°C
- Technology: Air-to-Water
- System Type: Split
- Cooling: Supported
- Product Number
- AHM-140HEDSAA
Technical Specifications
- Rated Thermal Power (7ºC - 35ºC)
- 14 kW
- Maximum Water Temperature
- 55 °C
- Heating Type
- Air to Water
- System Type
- Split
- Cooling
- Yes
- Domestic Hot Water
- No Domestic Water Supply
- Power Source
- Three-Phase

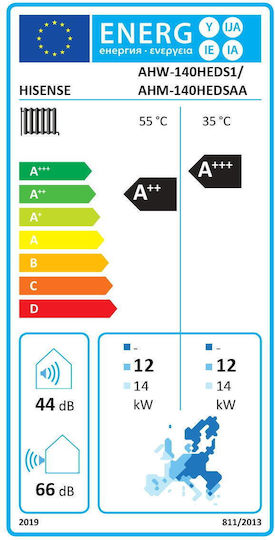

Energy Class
- Energy Class (35ºC)
- -
- Energy Class (55ºC)
- -
- COP (7ºC - 35ºC)
- -
- EER (7ºC - 35ºC)
- -
- Indoor Unit Noise Level
- -
- Outdoor Unit Noise Level
- -
Outdoor Dimensions
- Length
- -
- Height
- -
- Length
- -
Indoor Dimensions
- Length
- -
- Height
- -
- Length
- -
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
