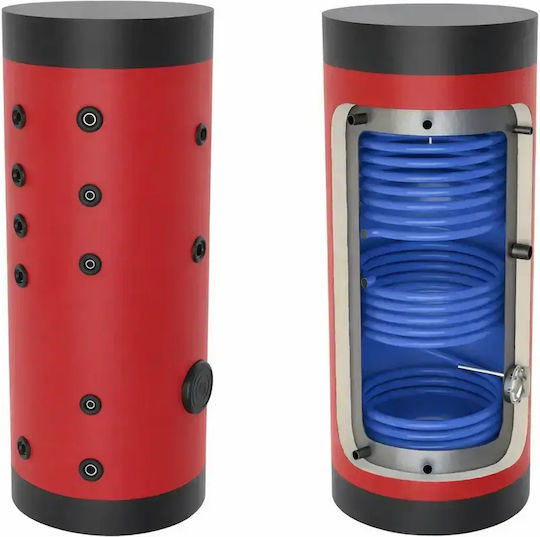

The Panthermica 2000L boiler is suitable for large professional and industrial installations. It features two large surface exchangers (5.25 m² and 2.39 m²) that supply the tank in parallel, ensuring a constant supply of hot water even during peak hours.

Features of the Panthermica 2000L boiler:

• Exchangers of 5.25 m² and 2.39 m² for quick volume heating
• 5mm steel thickness, 6mm dome for reinforced construction
• PU insulation 80mm, 16 kg/m³ to minimize losses
• Cathodic-Protected Enamel (TS 736) for protection in heavy-duty tanks
• Standards TS EN 13445-3 & 12897 for certified resistance at 10 Bar

Installation: The boiler requires a boiler room space with a free height of over 2.5 meters, suitable for:

• Advanced medium and large-scale hotels
• Apartment buildings with central hot water system
• Hospitals, clinics, and nursing homes
• Industrial units and laundries with continuous demand
• Large sports centers and hotel spas

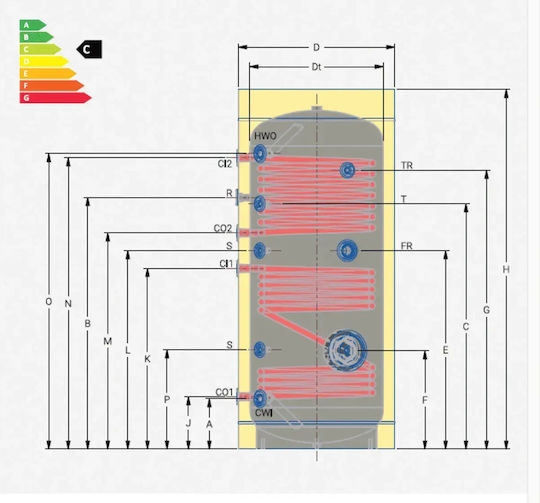

Two exchanger layout: The exchangers differ in surface area and position, delivering heat to where it is needed:

• Lower exchanger 5.25 m²: connects the solar array
• Upper exchanger 2.39 m²: absorbs energy from a boiler or heat pump
• Optional electric resistance: operates as a third backup source

Technical specifications:

• Capacity: 2000L
• Height: 2265mm
• Diameter: 1310mm
• Useful capacity: 1921 liters
• Weight (with insulation): 622 kg
• Steel thickness: 5 mm (dome 6 mm)
• Lower exchanger (solar): 5.25 m²
• Upper exchanger (boiler): 2.39 m²
• Cold water / Hot water: 1¼"
• Electric resistance: 2" (optional)
• Cleaning flange: 4"
• Magnesium anode: 1¼"
• Drain valve: 1¼"
• Sensors / Thermometer: ½"
• Maximum pressure: 10 Bar
• Maximum temperature: 95°C
• Insulation: Soft PU Foam 80mm, 16 kg/m³
• Body: Steel according to DIN EN 10111-98
• Interior: Enamel according to DIN 4753.3
• Anti-corrosive protection: TS 736 — Cathodic-Protected Enamel "G"
• Manufacturing standards: TS EN 13445-3 & TS EN 12897
• Quality: ISO 9001:2015
