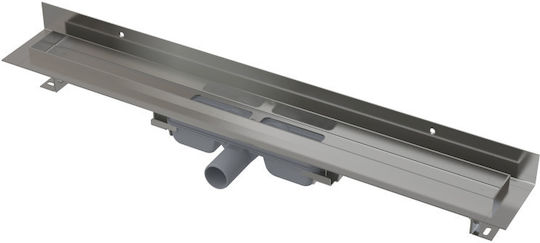

Linear Drain Stainless Steel Flange Siphon Full Grate
Floor Drains

Linear Drain Stainless Steel Flange Siphon Full Grate

Trap suitable for free passage and floor-level shower drainage. It can be installed directly on the wall and features full grates and filling with ceramic tiles, as well as prismatic gaps for indoor...

Trap suitable for free passage and floor-level shower drainage. It can be installed directly on the wall and features full grates and filling with ceramic tiles, as well as prismatic gaps for indoor use.

Specifications:

  • The flange and inlets are protected with a membrane and contain a layer of expanded polystyrene.
  • Trap material: polypropylene
  • Material:...
See Description & Specifications See Description & Specifications
188 98 €

10% cashback with Eurobank card

189 Coins 189 Coins
Delivery by Thu, 15 Oct
Free   shipping cost
From E-Garbis 4.5 (36)
4.5 (36 reviews)
Ραφήνα, Αττικής
In-store pickup available
3 pieces
See Bathroom on the page of E-Garbis
What if I want to return it?

You can return it for free within 14 days. We will come to your place, return it for free, and you will get your money back.

Questions
Review the product
Product report

Description & Specifications

Trap suitable for free passage and floor-level shower drainage. It can be installed directly on the wall and features full grates and filling with ceramic tiles, as well as prismatic gaps for indoor use.

Specifications:

  • The flange and inlets are protected with a membrane and contain a layer of expanded polystyrene.
  • Trap material: polypropylene
  • Material: stainless steel 2 mm, AISI 304, DIN 1.4301
  • Easy cleaning of the trap, including the drain pipe.
  • Option to purchase a combined trap.
  • Linear drain made of stainless steel (material reinforced with oxidation and passivation, electrochemically polished).
  • For full grates – stainless steel, heat-resistant glass, combination of stainless steel and heat-resistant glass, as well as for filling with ceramic tiles and prismatic gaps.
  • Self-adhesive sealing tape.
  • Trap permanently connected to the hydraulic network – 100% watertightness.
  • Installation height from 65 mm, height adjustable.
  • High flow capacity thanks to the trap's double chamber.

Included in the package:

  • Support set: screws Ø6×50 – 2 pcs, plugs Ø10 – 2 pcs, screws Ø4.2×38 – 3 pcs, plugs Ø8 – 3 pcs.
  • Installation cover – polystyrene.
  • Protective membrane for the flange.
  • Protective membrane for the trap inlet.
  • Self-adhesive sealing tape.
  • Drain pipe connected to the trap.

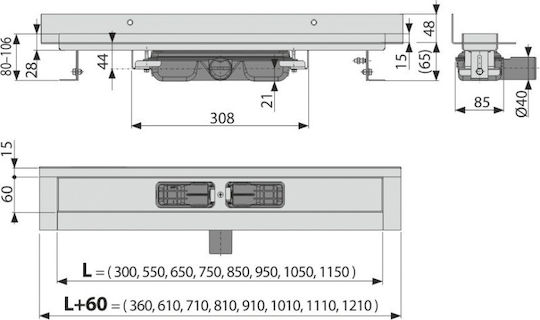

Parameters:

  • Total installation height: 80 - 106 mm.
  • Minimum concrete thickness: 65 mm.
  • Trap pressure resistance: 575 Pa.
  • Drain pipe diameter: 40 mm.
  • Flow rate: 35 l/min.
  • Load class K3: 300 kg.
  • Trap diameter: 28 mm.

Available for technical specification PDF.

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Type
Siphon
Placement
Shower
Material
Stainless Steel
Colour
Grey
Pieces
2 pcs

Additional Specifications

Double
No
Pop Up
No
Stainless Steel
Yes

Stainless Steel


Made of stainless material which makes it resistant to use and prolongs the replacement time due to wear.
Flexible
No
with Overflow
No
with Waste Bottle Trap
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
