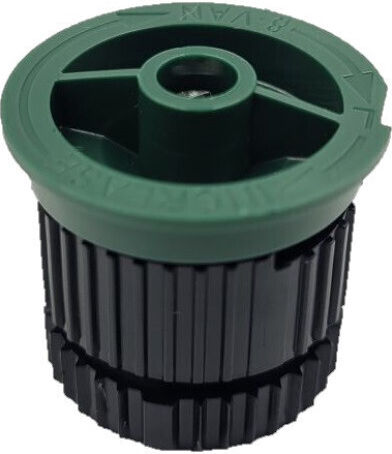

Rain Bird® VAN Series Sprinkler Nozzles provide precise lawn surface watering, adjustable to fit the exact pattern. Ideal for use on irregular shaped corners and smaller grassy areas around sidewalks and garages, they can also be used for watering flower beds or shrubs.

• Tool-free angle adjustment: Simply rotate the central ring to increase or decrease the angle – ideal for irregular shapes.
• Colored markings: Marking on the nozzle for quick identification of radius and angle even when the system is off.
• Constant precipitation rate: 12, 15 and 18-VAN models provide uniform precipitation rates compatible with Rain Bird MPR nozzles.
• Easy angle adjustment: From 0° to 360° for 10-, 12-, 15- and 18-VAN; from 0° to 330° for 4-, 6- and 8-VAN.
• Non-slip base: Textured base and ring for secure grip, even when wet.
• Left indicator line: Physical indication to maintain a steady left limit.
• Stainless steel adjustment screw: Controls flow and radius.
• Screw slot design: Prevents slippage during adjustments.
• Filter: Blue filter (0.02 × 0.02 inches) (included with the nozzles) for maintaining precise radius adjustment and preventing clogs.
• Compatibility: Compatible with all Rain Bird spray heads and adapters.

Technical Data:

• Range: from 1.8 to 2.4 m.
• Pressure: from 1.0 bar to 2.1 bar (15 psi to 30 psi).
• Optimal pressure: 30 psi (2.1 bar).
