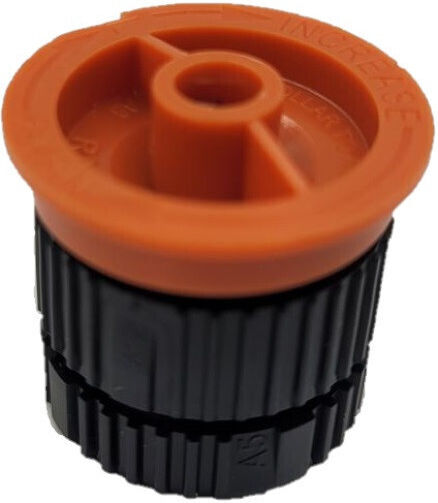

The Rain Bird® VAN series irrigation nozzles can be adjusted to match the exact shape of your lawn, providing precise watering. They are ideal for use in curved areas and smaller grassy spaces around sidewalks and parking lots. They can also be used for watering flower beds or shrubs.

• Simple adjustment: Just turn the central ring without the use of special tools to increase or decrease the angle setting.
• Coded markings: The color markings on the edge of the nozzle allow quick identification of the radius and angle even when the system is off.
• Consistent precipitation rates: Models 12, 15 and 18-VAN provide consistent precipitation rates that match Rain Bird MPR nozzles.
• Angle adjustment: Easy angle adjustment from 0° to 360° for 10-, 12-, 15- and 18-VAN and from 0° to 330° for 4-, 6-, and 8-VAN.
• Secure grip: The texture on the base and ring offers a secure grip even when wet.
• Left edge indicator: A physical indicator easily shows the fixed left edge.
• Stainless steel adjustment screw: Allows adjustment of flow and radius.
• Screw groove design: Prevents screwdriver slippage during adjustment.
• Filter: Blue filter (0.02 × 0.02 inch) is included with the nozzles to maintain precise radius adjustment and prevent clogging.
• Compatibility: Compatible with all Rain Bird spray heads and adapters.

Technical specifications:

• Distance: from 1.2 to 1.8 m.
• Pressure: from 1.0 bar to 2.1 bar (15 psi to 30 psi).
• Optimal pressure: 30 psi (2.1 bar).
