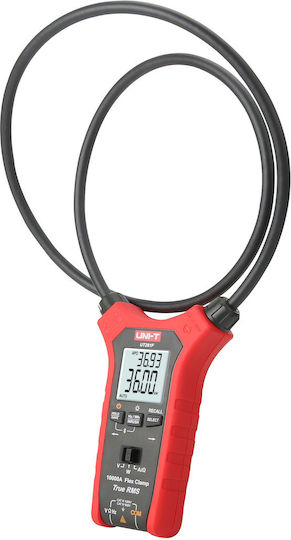

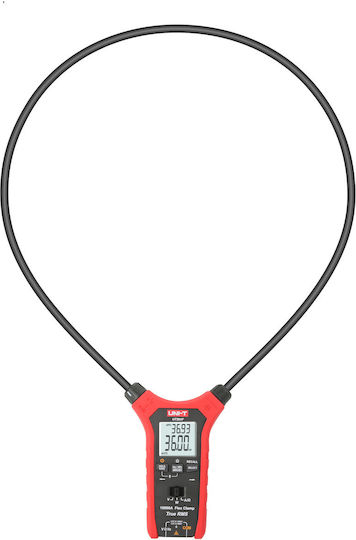

The UNI-T UT281F is a professional flexible AC True RMS clamp meter, designed for measuring high currents in industrial installations, power panels, photovoltaic plants, and applications where access around large conductors is difficult. With a flexible coil length of 1100mm and the ability to measure AC current up to 10000A, it offers a practical solution in places where a classic clamp meter with fixed jaws is not sufficient.
The UT281F features:
- 6000 counts display
- AC/DC voltage measurement up to 1000V
- Resistance up to 60MΩ
- Inrush current up to 1000A
- Storage of up to 1050 records
- Bluetooth 5.0 connection for use with an app
- Measurement functions for active, apparent and reactive power, electrical energy, power factor, and phase angle
Key features:
- Flexible AC True RMS clamp meter for high currents
- AC current measurement up to 10 kA
- Flexible coil length of 1100mm for conductors up to approximately 350mm in diameter
- Dual display and backlight
- Resistance measurement up to 60MΩ and continuity test
- Active power measurement up to 3600kW, electrical energy up to 3600kWh, power factor and phase angle
- High voltage OL alarm, over range alarm, Data Hold, data review and data delete
- Safety category CAT III 1000V / CAT IV 600V
- IP54 protection rating and 2m drop resistance
Ideal for industrial electricians and maintenance technicians, high-current measurements in power panels, and load testing with power, energy, power factor, and phase angle measurement.
- True RMS
- Yes
- with Test Leads
- -
- AC Current
- 1000 A
- Indication
- Digital
- Bluetooth
- Yes
- Safety Category
- CAT III
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
