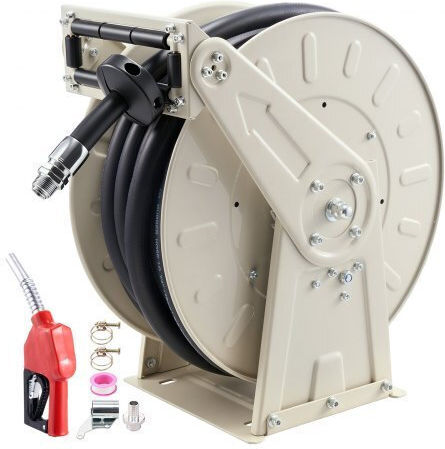

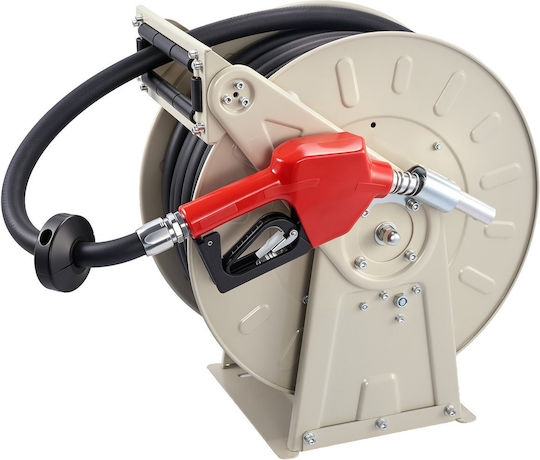

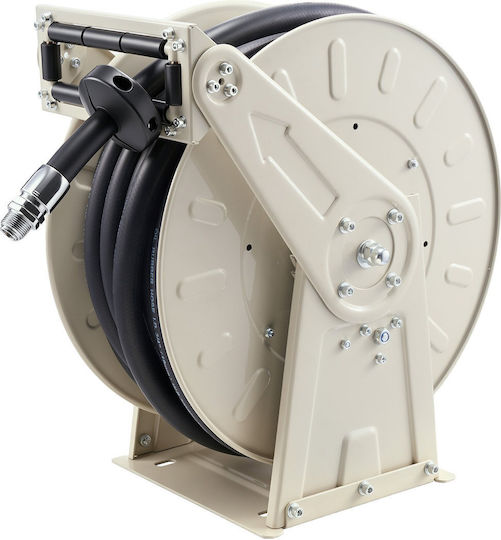

VEVOR Fuel Rewind Mechanism 3/4" – 66 ft / 19.8 m

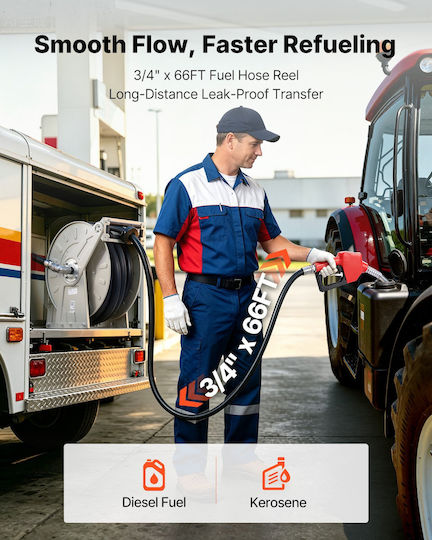

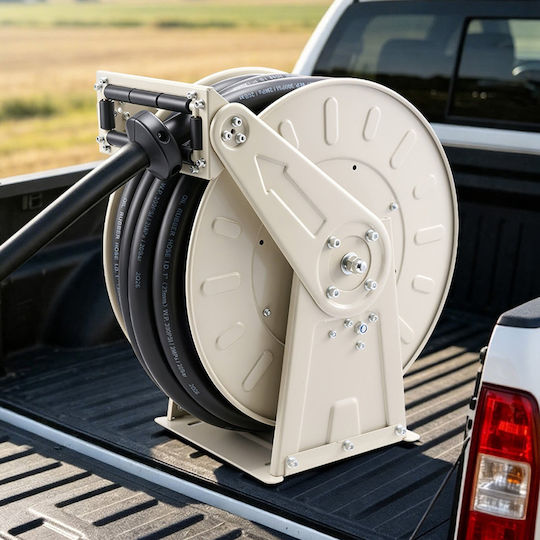

Durable construction, smooth retraction, and safe fuel transfer. The foldable VEVOR fuel rewind mechanism is designed for demanding professional use on trucks, construction sites, farms, docks, and mobile refueling units. It offers reliable operation, high durability, and easy handling in any diesel or kerosene transfer application.

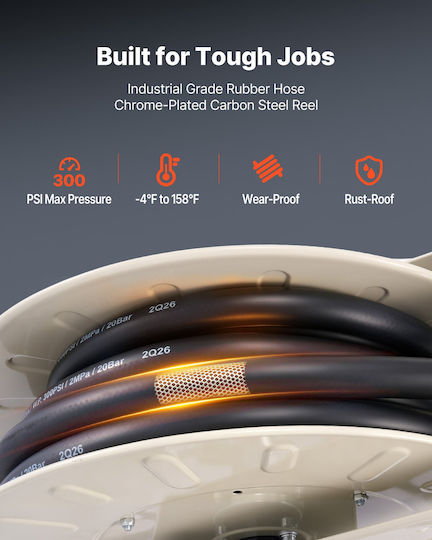

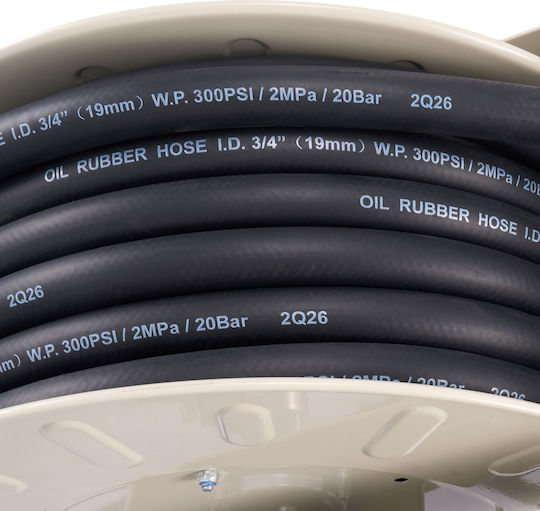

• Durable 3/4" NBR hose with a working pressure up to 300 PSI and temperature range from -20°C to 70°C.
• Metal reel made of steel with electrostatic coating, rounded edges, and double mounting bases for increased stability and outdoor use.
• Resistance to oils and punctures for long-term use in demanding conditions.

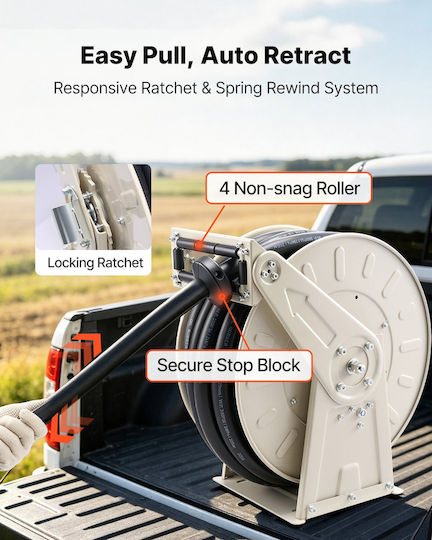

• Smooth rewinding with a manganese steel spring, roller guide, and stopper that reduces hose wear.
• Lock at any length thanks to the practical retention mechanism for comfortable and precise use.

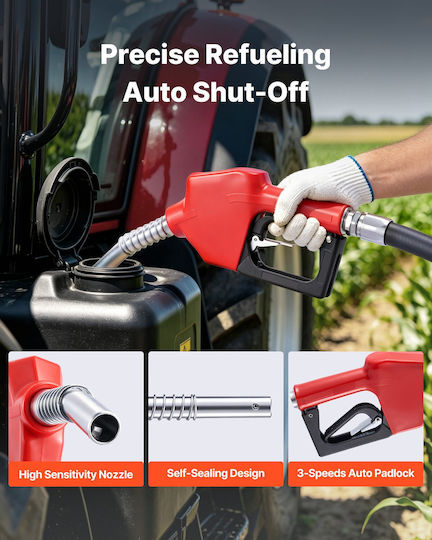

• Precise fuel flow control with a 3-setting aluminum nozzle and automatic shut-off when the tank is full.

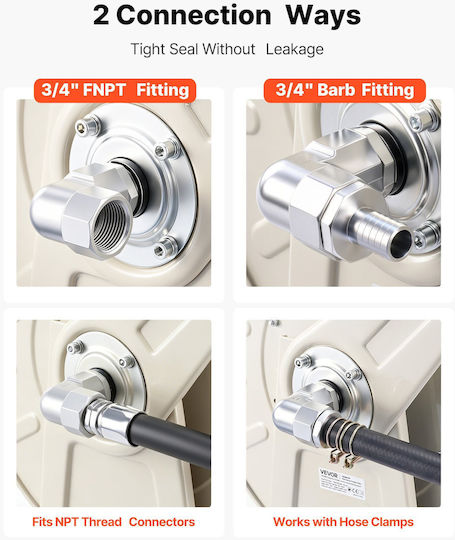

• Sealed connections with threaded FNPT and barb fittings for safe and reduced leakage.

Main features:

• Hose length: 66 ft / 19,800 mm
• Hose inner diameter: 3/4"
• Hose outer diameter: 1-7/64 in / Φ28 mm
• Inlet: 3/4" FNPT
• Outlet: 3/4" NPT
• Maximum pressure: 300 PSI / 2 MPa / 20 Bar
• Hose material: NBR Rubber Hose
• Product weight: 33.4 kg

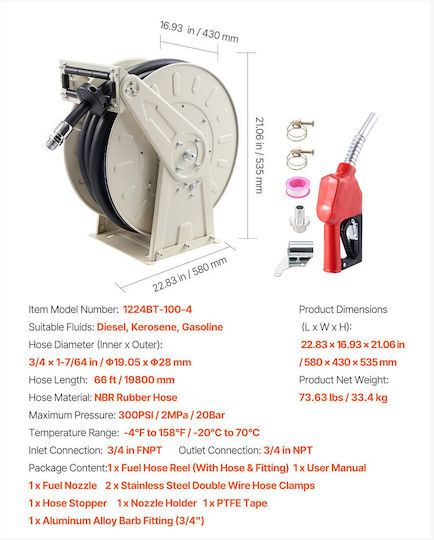

• Product dimensions: 580 x 430 x 535 mm
• Model code: 1224BT-100-4

Suitable for: Diesel, kerosene, and general professional use in fuel transfer and refueling.
