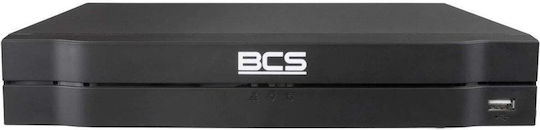

BCS BCS-L-NVR0802-A-4K-Ai(2) NVR Recorder 8 Channels with 4K Resolution
Surveillance Video Recorders

BCS BCS-L-NVR0802-A-4K-Ai(2) NVR Recorder 8 Channels with 4K Resolution

Supports up to 8 IP cameras with a maximum recording resolution of 32 Mpx and Pentaplex operation for live view, recording, playback, archiving, and remote access. Features face detection and...

Supports up to 8 IP cameras with a maximum recording resolution of 32 Mpx and Pentaplex operation for live view, recording, playback, archiving, and remote access. Features face detection and recognition, perimeter protection, crowd detection, people counting, and black/white lists.

  • Model: BCS-L-NVR0802-A-4K-Ai(2)
  • Disks: 40 TB (2 x 20 TB)
  • Recording modes:...
See full description See full description

Top specs

  • Type

    NVR

    Recorder that uses IP cameras and network connection for video recording and management.

  • Number of Channels

    The maximum number of cameras that can be connected to and managed by the recorder

  • Resolution

    4K

    The highest resolution available on the market (also known as 8 Megapixels). It offers 4 times more detail than Full HD. This is cinematic quality that allows for maximum possible zoom to recognize critical details, even from a great distance.

  • Incoming Bandwidth

    This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


    • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
    • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.

    384

  • HDD Slots

    The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.

  • Maximum Capacity per Disk

    The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.

  • Ports

    HDMI

    The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.

    USB

    Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.

    VGA

    An analog video output. Used to connect the recorder to older computer monitors.

    e-Sata

    A specialized, high-speed port that allows the connection of an external hard drive. It is mainly used in professional setups to expand the total storage (recording) capacity.

    Alarm Output

    Physical ports (terminals) that allow the recorder to give a "command" to external devices. For example, "As soon as I detect a person, activate an external siren or turn on the lights."

    Alarm Input

    Physical ports (terminals) that allow external sensors (e.g., door magnetic contact, radar) to send a "command" to the recorder (e.g., "The door just opened, start recording or send a notification").

  • Video Compression

    H.265+

    Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

    • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

    (Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)
  • See all
1107 44 €

10% cashback with Eurobank card

55,40€ cashback in bonus Coins 55,40€ cashback in bonus Coins
Delivery Tue, 03 Nov - Thu, 05 Nov
4,00 € to a Skroutz Point
Do you want it with Free shipping?
Sent from Poland
From Ovolt 4.7 (11)
4.7 (11 reviews)
Poland
9 pieces
See CCTV Systems on the page of Ovolt
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Review the product
Product report

Description

Description

Supports up to 8 IP cameras with a maximum recording resolution of 32 Mpx and Pentaplex operation for live view, recording, playback, archiving, and remote access. Features face detection and recognition, perimeter protection, crowd detection, people counting, and black/white lists.

  • Model: BCS-L-NVR0802-A-4K-Ai(2)
  • Disks: 40 TB (2 x 20 TB)
  • Recording modes: Continuous, manual, alarm, motion detection, schedule, Ai
  • Input/output/recording bandwidth: 384 Mbps (200 Mbps Ai)
  • Compression: H.265+/H.265/H.264+/H.264/MJPEG
  • Outputs: HDMI (4K), VGA. Up to 3840×2160 (HDMI), up to 1920×1080 (VGA)
  • Split: 1/4/8/9
  • Playback: 1/4/9/16 channels
  • Archiving: USB (FLASH, HDD)
  • Users: up to 128
  • Interfaces: USB 2.0, USB 3.0, eSATA, RS232, RS485
  • Alarms: 4/2 (Motion detection, signal loss, tampering, scene change, PIR, Ai, offline, HDD, IP, MAC, login)
  • Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, FTP, P2P
  • PTZ: Smart 3D positioning with BCS Line cameras
  • Power supply: 12V DC, up to 10W
  • Operating conditions: -10°C~+55°C, up to 93% humidity
  • Dimensions: 375×282×56 mm
  • Weight: 1.56 kg without disks

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Type
NVR

Type

NVR
Recorder that uses IP cameras and network connection for video recording and management.
Number of Channels Outputs
8

Number of Channels Outputs

The maximum number of cameras that can be connected to and managed by the recorder
Resolution
4K

Resolution

4K

The highest resolution available on the market (also known as 8 Megapixels). It offers 4 times more detail than Full HD. This is cinematic quality that allows for maximum possible zoom to recognize critical details, even from a great distance.
WiFi
No

WiFi

Specifies whether the device can connect wirelessly to your router (Wi-Fi)
Incoming Bandwidth
384 Mbps

Incoming Bandwidth: 384

This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


  • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
  • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.
Gigabit Port
Yes

Gigabit Port

Specifies the speed of the wired network connection (LAN). "Gigabit" (1000 Mbps) is 10 times faster than standard "Fast Ethernet" (100 Mbps). It is essential for multi-channel 4K NVRs to handle the large volume of data from the cameras without delay.
Ports
HDMI, USB, VGA, e-Sata, Alarm Output, Alarm Input

Ports

HDMI
The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.
USB

Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.

VGA

An analog video output. Used to connect the recorder to older computer monitors.

e-Sata
A specialized, high-speed port that allows the connection of an external hard drive. It is mainly used in professional setups to expand the total storage (recording) capacity.
Alarm Output
Physical ports (terminals) that allow the recorder to give a "command" to external devices. For example, "As soon as I detect a person, activate an external siren or turn on the lights."
Alarm Input
Physical ports (terminals) that allow external sensors (e.g., door magnetic contact, radar) to send a "command" to the recorder (e.g., "The door just opened, start recording or send a notification").
ONVIF
No

ONVIF

ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.
Video Compression
H.265+

Video Compression

H.265+

Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

  • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

(Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)

Smart AI Detection

Human Detection
Yes

Human Detection

The technology recognizes human shapes in real time. Ideal for security, area monitoring, or alarms, reducing false alarms caused by other objects.
Vehicle Detection
Yes

Vehicle Detection

Recognizes and tracks vehicles, distinguishing them from other objects. Useful for parking, traffic management, or road surveillance.

HDD

HDD Slots
2

HDD Slots

The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.
Maximum Capacity per Disk
40 TB

Maximum Capacity per Disk

The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.
Includes Hard Drive
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

Supports up to 8 IP cameras with a maximum recording resolution of 32 Mpx and Pentaplex operation for live view, recording, playback, archiving, and remote access. Features face detection and recognition, perimeter protection, crowd detection, people counting, and black/white lists.

  • Model: BCS-L-NVR0802-A-4K-Ai(2)
  • Disks: 40 TB (2 x 20 TB)
  • Recording modes: Continuous, manual, alarm, motion detection, schedule, Ai
  • Input/output/recording bandwidth: 384 Mbps (200 Mbps Ai)
  • Compression: H.265+/H.265/H.264+/H.264/MJPEG
  • Outputs: HDMI (4K), VGA. Up to 3840×2160 (HDMI), up to 1920×1080 (VGA)
  • Split: 1/4/8/9
  • Playback: 1/4/9/16 channels
  • Archiving: USB (FLASH, HDD)
  • Users: up to 128
  • Interfaces: USB 2.0, USB 3.0, eSATA, RS232, RS485
  • Alarms: 4/2 (Motion detection, signal loss, tampering, scene change, PIR, Ai, offline, HDD, IP, MAC, login)
  • Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, FTP, P2P
  • PTZ: Smart 3D positioning with BCS Line cameras
  • Power supply: 12V DC, up to 10W
  • Operating conditions: -10°C~+55°C, up to 93% humidity
  • Dimensions: 375×282×56 mm
  • Weight: 1.56 kg without disks
