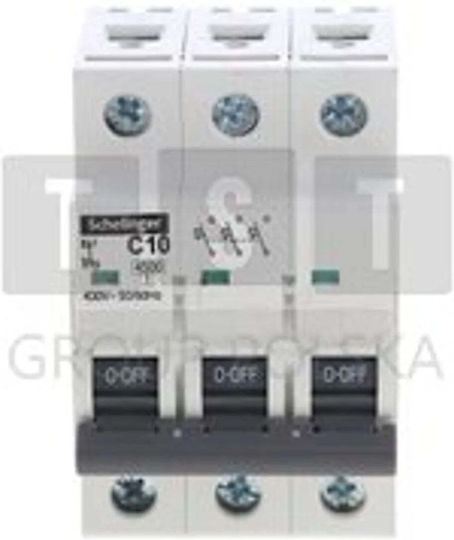

Bemko Automatic Circuit Breaker 10A Three Pole A02-G7-3P-C10
Automatic Circuit Breaker

Bemko Automatic Circuit Breaker 10A Three Pole A02-G7-3P-C10

Miniature circuit breaker Schelinger A02-G7-3P-C10 for protection of electrical circuits against overload and short circuit.

  • Rated current: 10.00 A
  • Operating voltage: 400.00 V
  • Poles: 3 poles, 3 units...

Miniature circuit breaker Schelinger A02-G7-3P-C10 for protection of electrical circuits against overload and short circuit.

  • Rated current: 10.00 A
  • Operating voltage: 400.00 V
  • Poles: 3 poles, 3 units
  • Tripping characteristic: C
  • Operating capacity: 6000 A
  • Short-circuit capacity (Inc): 4500 A
  • Energy limiting class: 1
  • Impulse voltage (Uimp): 4 kV
  • Insulation...
See full description See full description
13 85 €
14 Coins 14 Coins
Delivery Mon, 12 Oct - Fri, 16 Oct
2,50 € to a Skroutz Point
or   3,50 €   shipping cost
From Agmia
Πειραιάς, Αττικής
15 pieces
See Electrical Panel Supplies on the page of Agmia
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Review the product
Product report

Description

Description

Miniature circuit breaker Schelinger A02-G7-3P-C10 for protection of electrical circuits against overload and short circuit.

  • Rated current: 10.00 A
  • Operating voltage: 400.00 V
  • Poles: 3 poles, 3 units
  • Tripping characteristic: C
  • Operating capacity: 6000 A
  • Short-circuit capacity (Inc): 4500 A
  • Energy limiting class: 1
  • Impulse voltage (Uimp): 4 kV
  • Insulation voltage (Ui): 500 V
  • Terminal capacity: 25 mm²
  • Protection degree: IP20
  • Dimensions: length 81 mm, width 53 mm
  • Color: white
  • Material: steel, plastic
  • Certifications: CE, EAC

Includes three-phase miniature circuit breaker.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Number of Poles
3
Rated Current
10 A
Operating Curve
Curve C

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve C

The most common in general installations, ideal for circuits with motors or electronic devices.

Power Supply

AC
No
DC
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

Miniature circuit breaker Schelinger A02-G7-3P-C10 for protection of electrical circuits against overload and short circuit.

  • Rated current: 10.00 A
  • Operating voltage: 400.00 V
  • Poles: 3 poles, 3 units
  • Tripping characteristic: C
  • Operating capacity: 6000 A
  • Short-circuit capacity (Inc): 4500 A
  • Energy limiting class: 1
  • Impulse voltage (Uimp): 4 kV
  • Insulation voltage (Ui): 500 V
  • Terminal capacity: 25 mm²
  • Protection degree: IP20
  • Dimensions: length 81 mm, width 53 mm
  • Color: white
  • Material: steel, plastic
  • Certifications: CE, EAC

Includes three-phase miniature circuit breaker.

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Number of Poles
3
Rated Current
10 A
Operating Curve
Curve C

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve C

The most common in general installations, ideal for circuits with motors or electronic devices.

Power Supply

AC
No
DC
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
