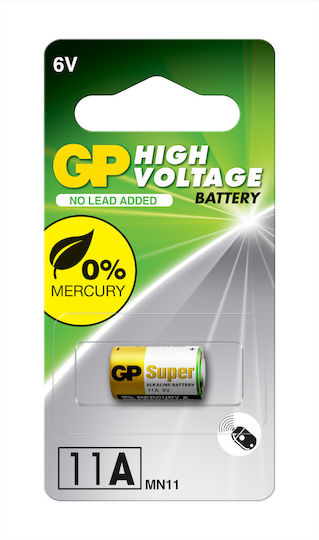

GP Batteries A11 6V
- Category: Alkaline Batteries
- Chemical System: Alkaline Manganese Dioxide
- Nominal Voltage: 6 Volts
- Nominal Dimensions: Ф 10.0 mm x 16.0 mm
- Contact Position: Nickel-plated flat contact - protruding red (+), recessed black (-)
- Jacket: Metal jacket
- Internal Connection: Pressure
- Application: Remote control
- Nominal Weight: 4.0g
- Nominal Capacity: 38mAh (to 3.0 Volts), rated at a 10kΩ load, at 20 C
- Discharge Current: Below 15 mA pulses, 0.5mA continuous
- Date Code: Each battery will have a numerical year code and an analog month code, either every two months.
- Shelf Life: Not less than 85% of service life after 3 years of storage at 20 C
- Insulation Resistance: 5MΩ minimum
- Open Circuit Voltage: 4.7 Volts (minimum) (200 Ω load resistor at 20 C for 1 to 2 seconds)
- Product Number
- GP-BA-11AF-U5
- Size
- A11
- Voltage
- 6 V
