Main Specifications
- Power Source
- Electric
- Type
- Biscuit Joiner
Current Specifications
- Power
- 800 W
- Cable Length
- -
Features & Functions
- Speed Setting
- No
- Dust Suction System
- No
- Handle Included
- No
- Brushless
- No
- Integrated Light
- No
- Net Weight
- 2.6 kg
Plunge Router
- Side Guide
- No
Biscuit Joiners
- Cutting Depth
- 20 mm
Planers
- Corner Notch
- No
Contents
- Carrying Case
- Without
- Accessories
- -
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
Description

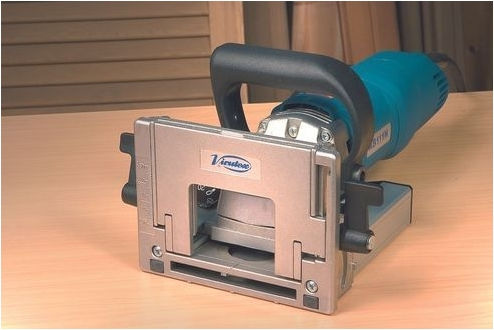

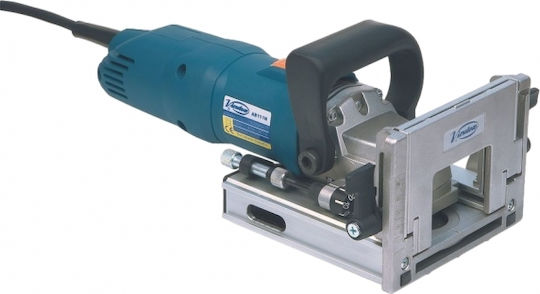

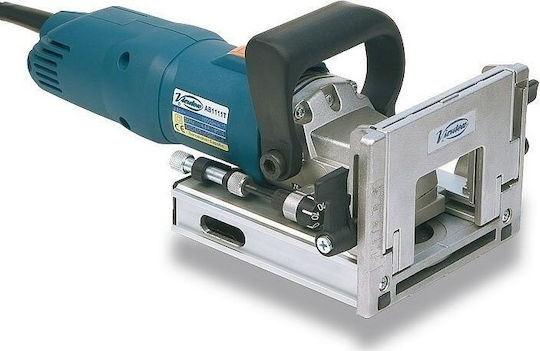

AB 111N Biscuit Joiner Tool 800W
Features
- Power: 800W
- Slotting disc: 100x22x4 mm
- No-load speed: 10000/min
- Max. slotting depth: 20mm
- Max. slotting width: 60mm
- Weight: 2.6 Kg
Description

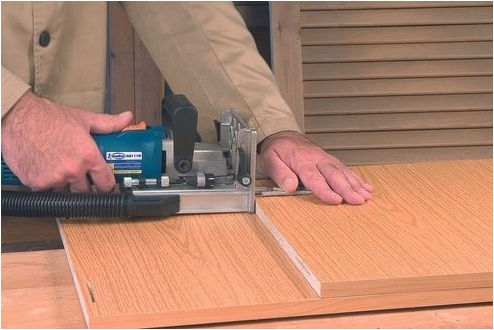

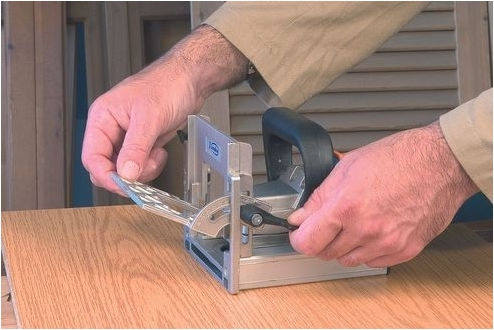

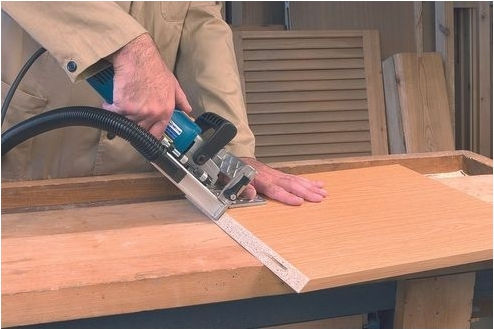

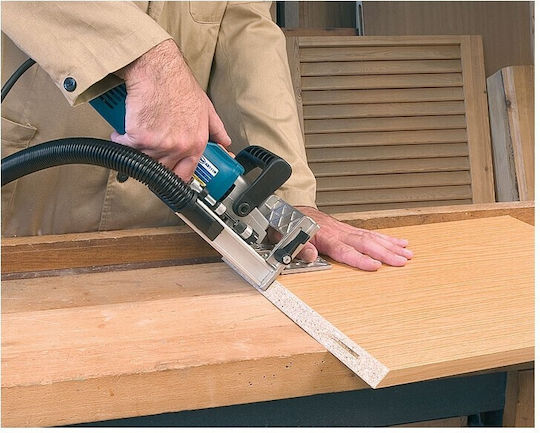

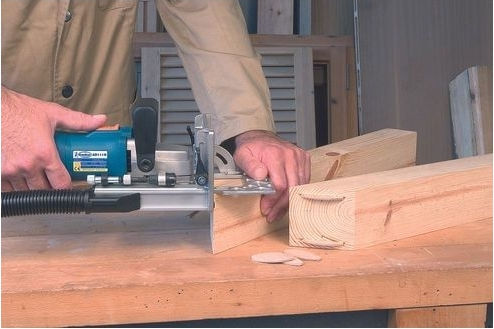

The AB111N machine is specially designed for slotting panels in any position. Its micrometric guide can be adjusted to any height and angle. No precise markings are required, only simple notes due to the ability to move the piece by 2mm after the slots have been made. The preset stop guide allows for quick and easy selection of different slotting depths. It is equipped with an electronic control system, which maintains a constant speed regardless of the working load, allowing slotting to be done easily and accurately on all types of wood. The angle and height of the front section are adjusted with a graduated scale. Quick adjustment of different slotting depths.
Types of connections:
- Mid-panel connections
- Beveled connections
- Vertical connections
- Beveled connections for frames
Optional accessories:
- Side guide CB64B - Skirting marking for parquet installation
- Repair head CA64B - Optional accessory for repairing problematic wood (small resin pockets, knots, etc.), quick and easy installation on the AB111N tool (disc not included)
- 3.5m dust extractor connection hose
Included:
- Slotting disc 100x22x4mm with 2 teeth and 2+2 scoring teeth
- Carrying case
- Connection accessory for external extraction
